Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Emission Control System / Exhaust Emission Control System / Catalytic Converter

Hyundai Santa Cruz: Exhaust Emission Control System / Catalytic Converter

- Description The catalytic converter of the gasoline engine is a three way catalyst. It oxidizes carbon monoxide and hydrocarbons (HC), and separates oxygen from the oxides of nitrogen (NOx).

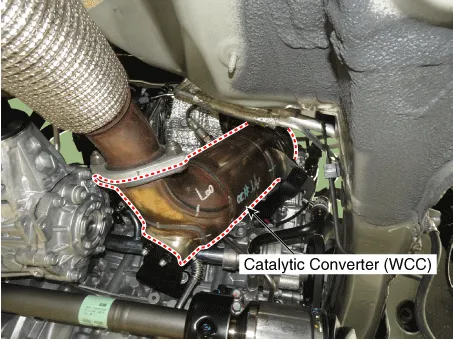

- Removal [Catalytic Converter (WCC)]

1.Remove the turbocharger & exhaust manifold.(Refer to Engine Mechanical System - "Turbocharger & Exhaust Manifold")

- Installation

1.Install in the reverse order of removal.
