Hyundai Santa Cruz: Timing System / Components and Components Location

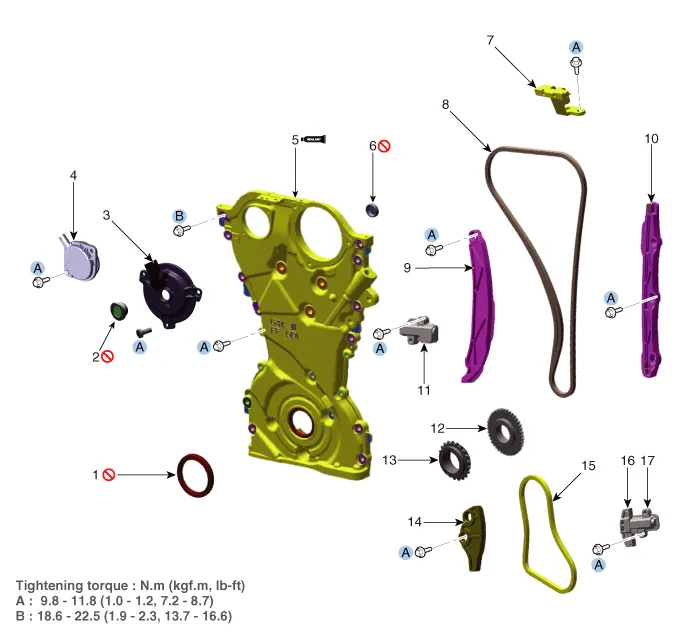

- Components

1. Front oil seal
2. E-CVVT cover plug
3. E-CVVT assembly cover
4. Variable force solenoid valve (VFS)
5. Timing chain cover
6. E-CVVT plug
7. Timing chain cam to cam guide
8. Timing chain
9. Timing chain tensioner arm
10. Timing chain guide
11. Timing chain tensioner
12. Balance shaft chain sprocket
13. Timing chain sprocket
14. Balance shaft chain guide
15. Balance shaft chain
16. Balance shaft chain tensioner arm
17. Balance shaft chain tensioner


    Timing System
    ...

    Front Oil Seal
    - Replacement 1.Remove the crankshaft damper pulley.(Refer to Drive Belt System - "Crankshaft Damper Pulley") 2.Remove the front oil seal (A). 3.Install the new front oil seal.(1)Apply engine ...
