Hyundai Santa Cruz: Cylinder Head Assembly / Components and Components Location

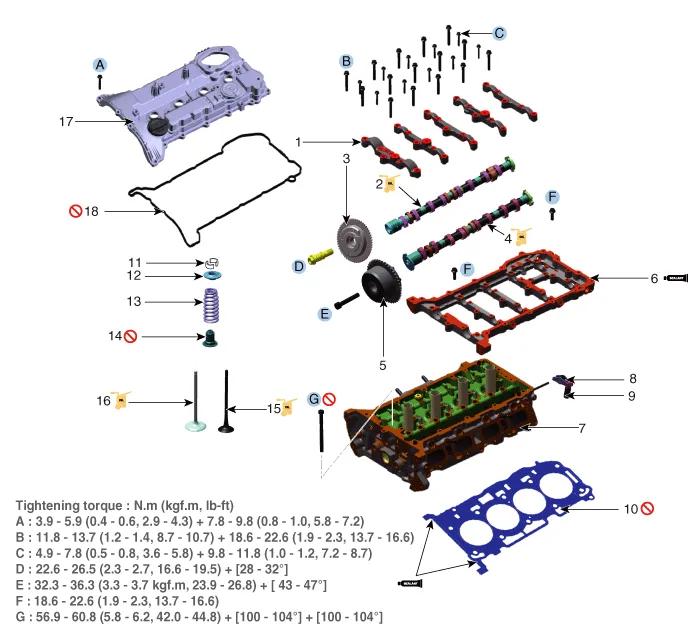

- Components

1. Camshaft bearing cap
2. Exhaust camshaft
3. Exhaust CVVT assembly
4. Intake camshaft
5. Intake E-CVVT assembly
6. Cam carrier
7. Cylinder head
8. Swing arm
9. Hydraulic lash adjuster (HLA)
10. Cylinder head gasket
11. Retainer lock
12. Retainer
13. Valve spring
14. Valve stem seal
15. Exhaust valve
16. Intake valve
17. Cylinder head cover
18. Cylinder head cover gasket


    Cylinder Head Assembly
    ...

    Cylinder Head Cover
    - Removal     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.   ...
