Hyundai Santa Cruz: Emission Control System / Components and Components Location

- Components Location

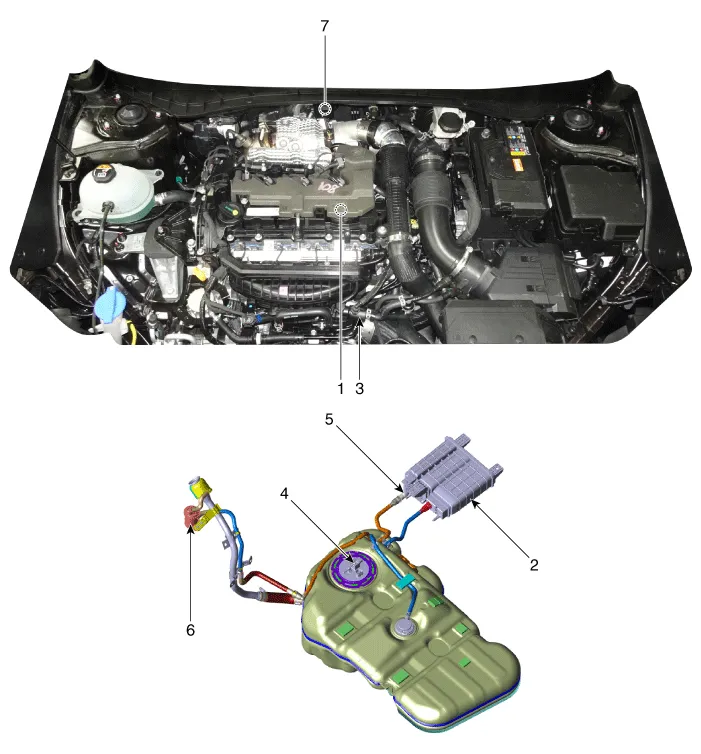

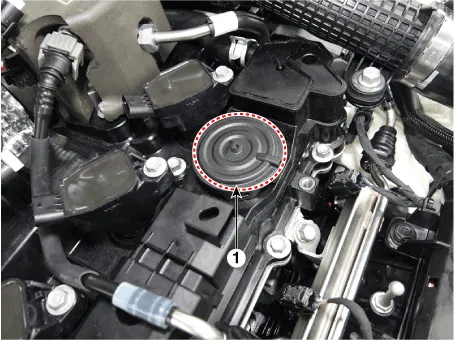

1. Crankcase pressure regulating valve (PRV)
2. Canister
3. Purge control solenoid valve (PCSV)
4. Fuel Tank Pressure Sensor (FTPS)
5. Canister Close Valve (CCV)

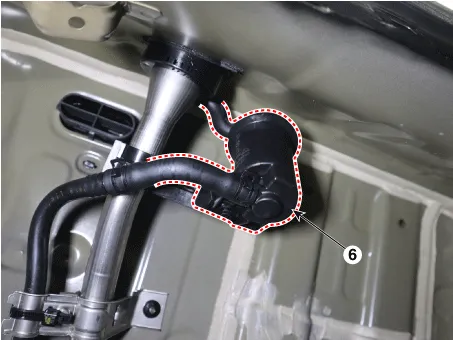

6. Fuel tank air filter

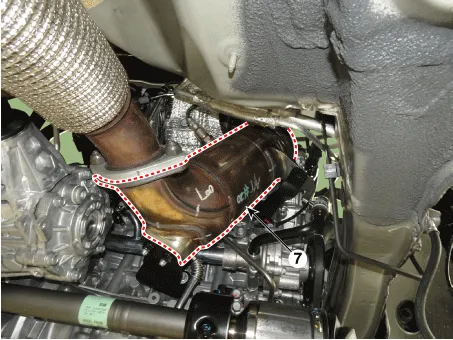

7. Catalytic converter (WCC)


1. Crankcase Pressure Regulating Valve (PRV) 2. Canister

3. Purge control solenoid valve (PCSV) 4. Fuel Tank Pressure Sensor (FTPS)

5. Canister Close Valve (CCV) 6. Fuel Tank Air Filter

7. Catalytic Converter (WCC)


    Description and Operation
    - Description Emissions Control System consists of three major systems. • The Crankcase Emission Control System prevents blow-by gas from releasing into the atmosphere. This system recycles g ...

    Troubleshooting
    - Troubleshooting SymptomSuspect area Engine will not start or hard to startVapor hose damaged or disconnected Engine struggles to startMalfunction of the Purge Control Solenoid Valve Rough idle ...
