Hyundai Santa Cruz: Tire Pressure Monitoring System / Components and Components Location

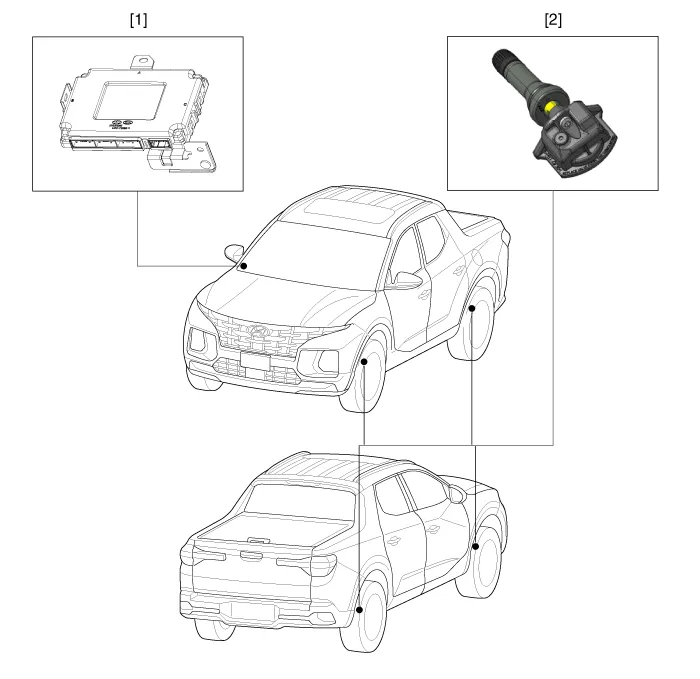

1. Receiver
2. TPMS Sensor
Description and Operation
- Description
TREAD Lamp
– Tire Under Inflation / Leak Warning.
1.Turn on condition – When tire pressure is below allowed threshold
– When rapid leak is detected by the sensor.
– ...
TPMS Sensor
- Description
1.Driving stateSensor transmissions occur every 1 minutes and pressure is measured every 15 seconds.
2.Stationary stateSensor transmissions does not occur and pressure is measure ...
