Hyundai Santa Cruz: Crash Pad / Components and Components Location

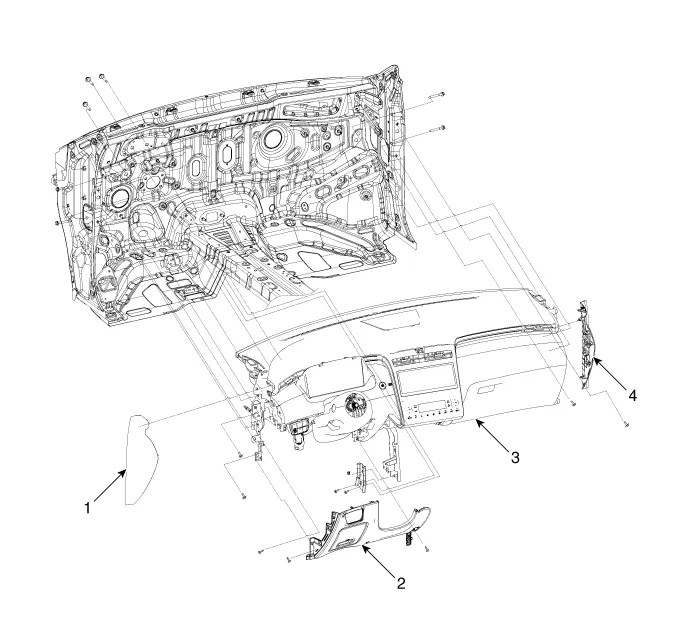

- Components

1. Crash pad side cover [LH]
2. Crash pad lower panel
3. Crash pad assembly
4. Crash pad side cover [RH]
