Hyundai Santa Cruz: Windshield Wiper/Washer / Components and Components Location

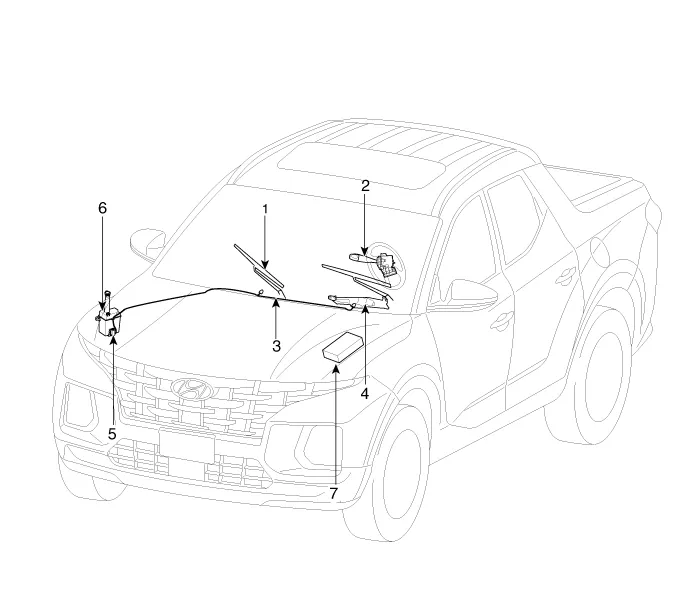

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose & nozzle
4. Windshield wiper motor & linkage
5. Washer motor
6. Washer reservoir
7. Front wiper relay (Engine room junction block)
Windshield Wiper-Washer Switch
- Inspection
1.Check for continuity between the terminals in each switch position as shown below.
SwitchSwitch positionResistance (Ω, ±3.5%)
Front wiper switchMIST330
OFF∞
INT (Auto)800
...
