Hyundai Santa Cruz: AC Inverter System / Components and Components Location

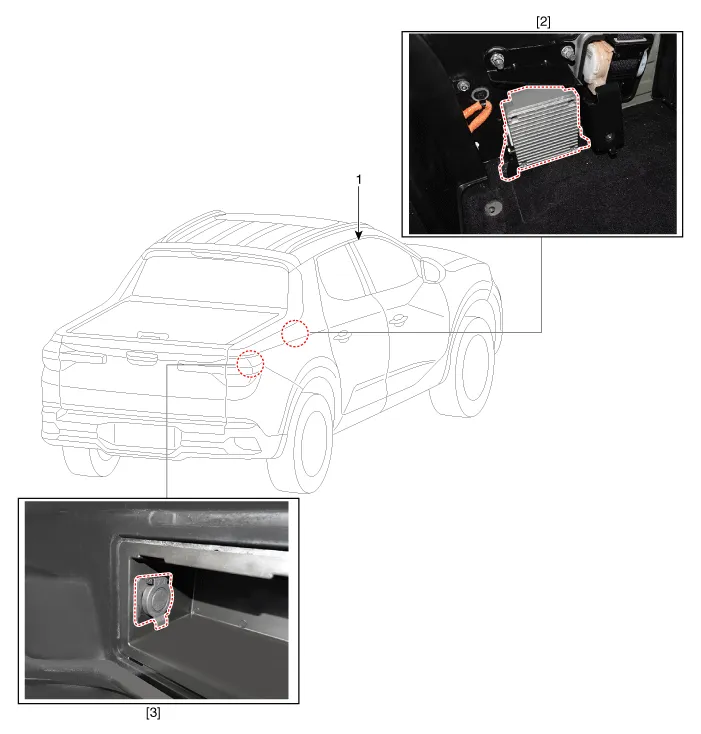

- Component Location

1. Battery
2. AC inverter Unit
3. AC inverter outlet


    Description and Operation
    - Description An inverter is a device that transforms the DC voltage from the battery into an AC voltage (220 V). The inverter can power various electrical devices that consume 200 W or less, i ...

    Specifications
    - Specification ItemSpecification Rated VoltageDC 12.5V Operating voltageDC 12.2 - 15.3V Operating temperature-30°C to 75°C Output voltageAC 103.5 -126.5 V (rms) Output frequency60 ± 6 ㎐ ...
