Setting set speed

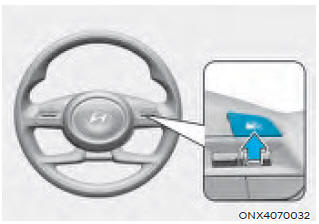

1. Accelerate to the desired speed, which must be more than 20 mph (30 km/h).
2. Press the Driving Assist ()
button
at the desired speed. The set speed
and Cruise (
) indicator will
illuminate on the cluster.
3. Release the accelerator pedal. Vehicle speed will maintain the set speed even when the accelerator pedal is not depressed.
Information
On a steep slope, the vehicle may slightly slow down or speed up while driving uphill or downhill.

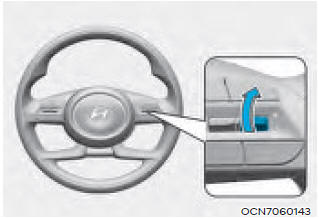

Increasing set speed

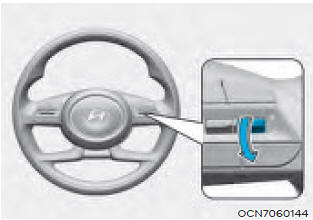

Decreasing set speed
Accelerating temporarily
If you want to speed up temporarily when Cruise Control is on, depress the accelerator pedal.
To return to the set speed, take your foot off the accelerator pedal.
If you push the + switch up or - switch down at increased speed, the set speed will be set to the current increased speed.
Temporarily pausing Cruise Control
Cruise Control pauses when:
The set speed will turn off but the Cruise
() indicator will stay on.
NOTICE
If Cruise Control pauses during a situation that is not mentioned, have the vehicle inspected by an authorized HYUNDAI dealer.

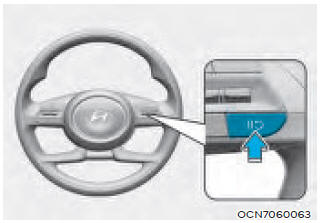

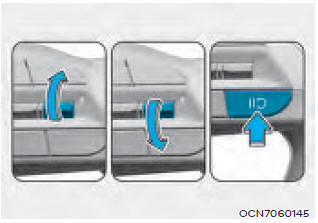

Resuming Cruise Control
Push the +, - switch or button.
If you push the + switch up or - switch down, vehicle speed will be set to the current speed on the cluster.
If you push the button, vehicle
speed will resume to the preset speed.
Vehicle speed must be above 20 mph (30 km/h) for the function to resume.
WARNING
Check the driving condition before
using the button. Driving
speed
may sharply increase or decrease when
you press the
button.
Turning off Cruise Control

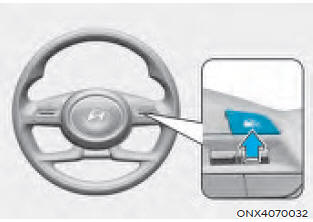

Press the Driving Assist ()
button
to turn Cruise Control off. The Cruise
(
) indicator will go off.
Always press the Driving Assist (
)
button to turn Cruise Control off when
not in use.
Information
If your vehicle is equipped with Manual Speed Limit Assist, press and hold the Driving Assist button to turn off Cruise Control. However, Manual Speed Limit Assist will turn on.
WARNING
Take the following precautions when using Cruise Control:
