Hyundai Santa Cruz: Driveshaft Assembly / Dynamic Damper

- Removal

1.Remove the front driveshaft.(Refer to Driveshaft Assembly - "Front Driveshaft")

2.Remove the trans axle side joint.(Refer to Driveshaft Assembly - "Transaxle Joint")

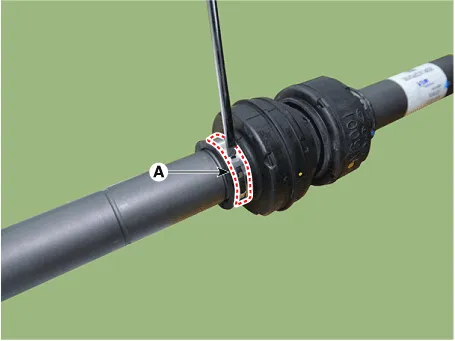

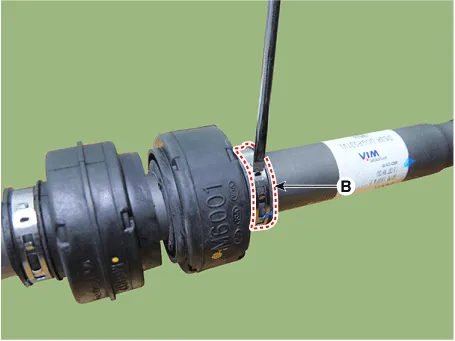

3.Remove the dynamic damper band (A, B) using driver (-).



• When removing the dynamic damper, lubricate the shaft with soapy water to prevent shaft damage.

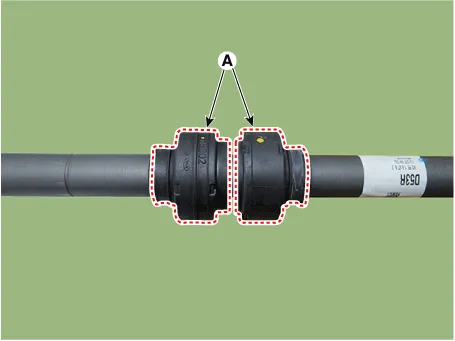

4.Remove the dynamic damper (A).

- Installation

1.Install the dynamic damper (A).



• When installing the dynamic damper, install it in set with the mounting part (A) of the shaft.

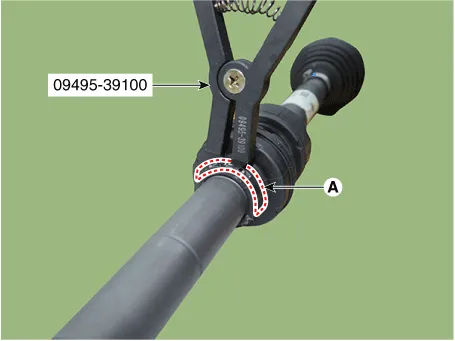

2.Install the dynamic damper band (A) using SST (09495-39100).

3.Install the transaxle side joint.(Refer to Driveshaft Assembly - "Transaxle Joint")

4.Install the front driveshaft.(Refer to Driveshaft Assembly - "Front Driveshaft")
