Hyundai Santa Cruz: Front Seat / Front Seat Cushion Cover

- Component Location

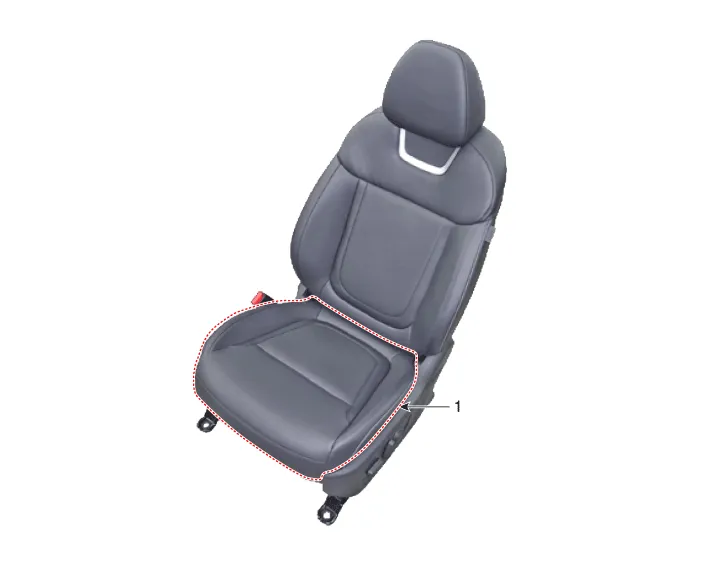

1. Front seat cushion cover


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the front seat.

1.Remove the front seat shield outer cover.(Refer to Front Seat - "Front Seat Outer Cover")

2.Remove the front seat shield inner cover.(Refer to Front Seat - "Front Seat Inner Cover")

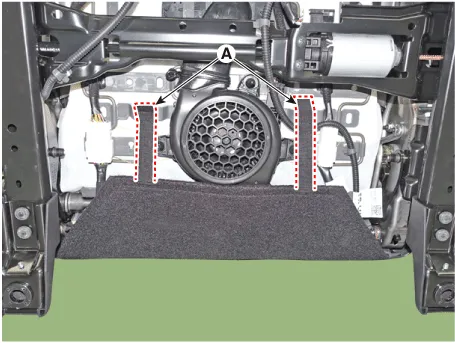

3.Remove the front seat lower protector (A).

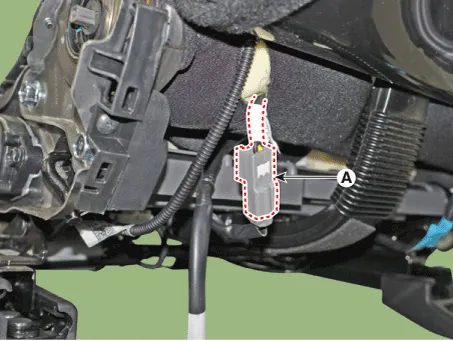

4.Disconnect the connectors (A).

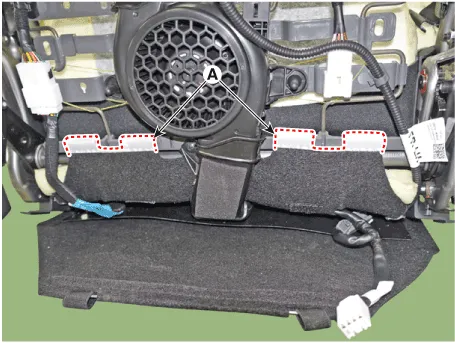

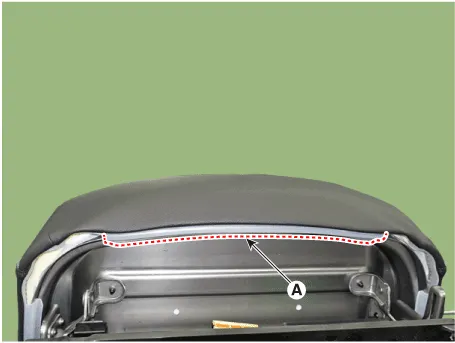

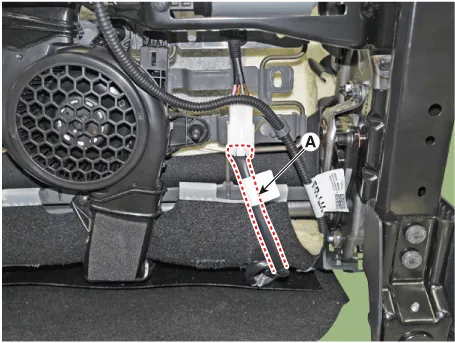

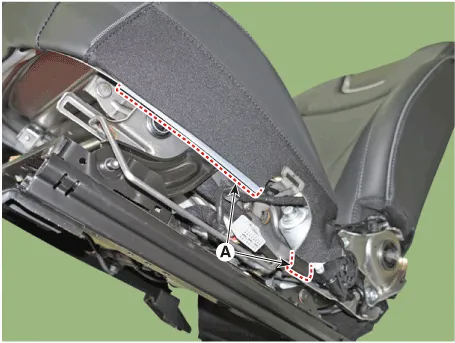

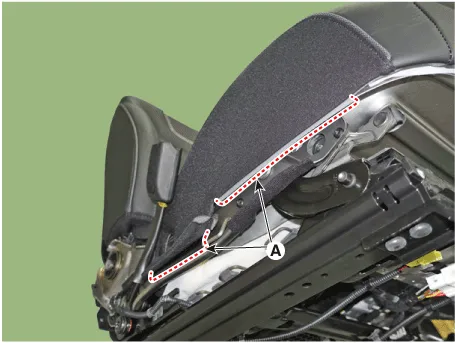

5.Remove the protector (A) from the front seat cushion frame.[Upper]

[Lower]

[LH]

[RH]

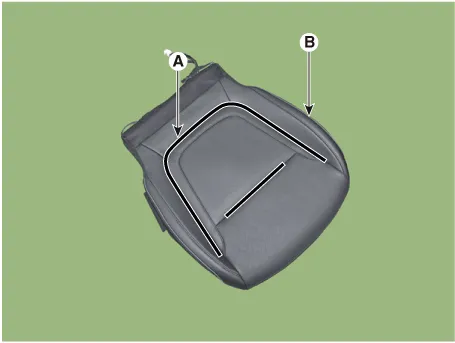

6.After removing the Velcro tape (A) inside the front seat cushion cover, remove the seat cushion cover (B).

7.To install, reverse removal procedure.



• Make sure that the connectors are connected completely

• Replace any damaged clips (or pin-type retainers).
