Hyundai Santa Cruz: Fuel Delivery System / Fuel Pump Motor

- Removal [A type]

1.Remove the fuel pump.(Refer to Fuel System - "Fuel Pump")

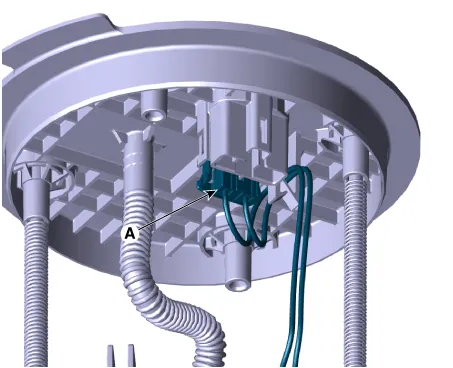

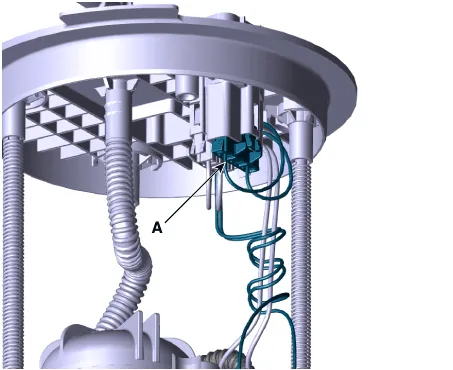

2.Disconnect the fuel sender connector (A).

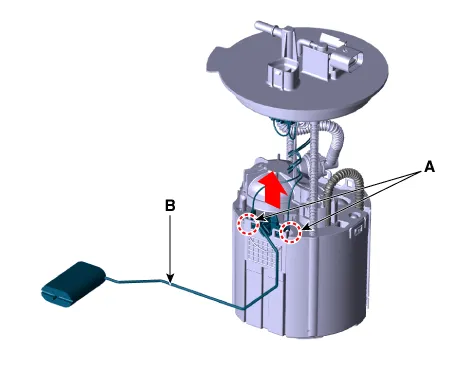

3.Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.

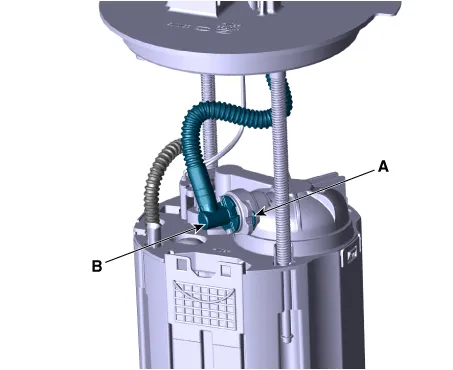

4.Remove the fixing pin (A) and then disconnect the fuel feed tube (B).

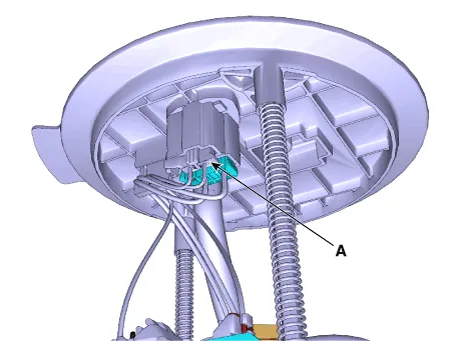

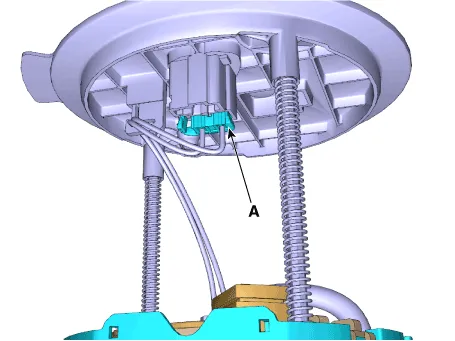

5.Disconnect the fuel pump motor connector (A).

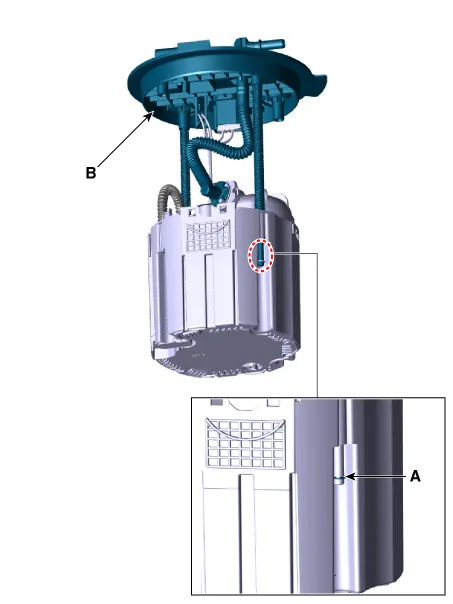

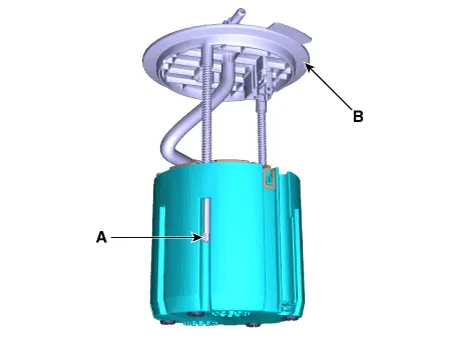

6.Remove the fixing pin (A) and then remove the head assembly (B).

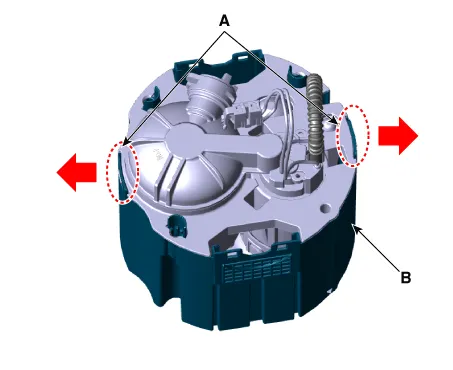

7.Release the fixing hook (A) and then remove the reservoir-cup (B).

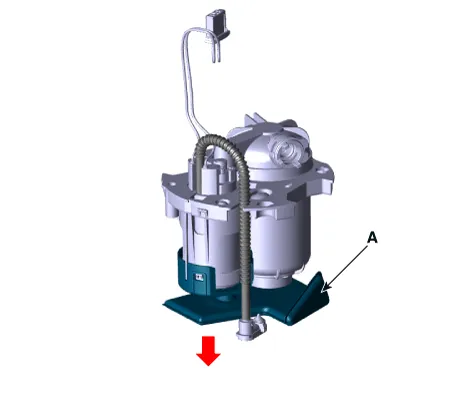

8.Release the fixing hook and then remove the pre filter (A).

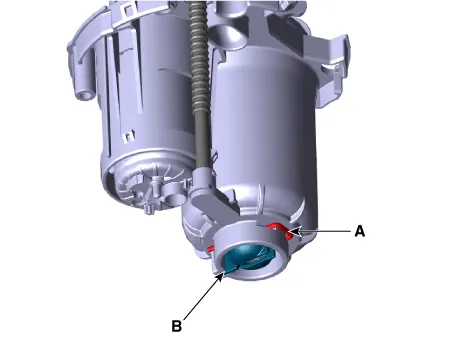

9.Remove the fixing pin (A) and then remove the fuel pressure regulator cover (B).

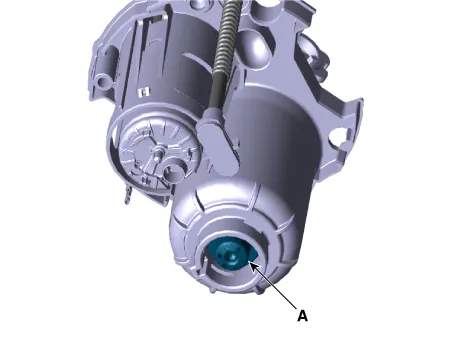

10.Remove the fuel pressure regulator (A).

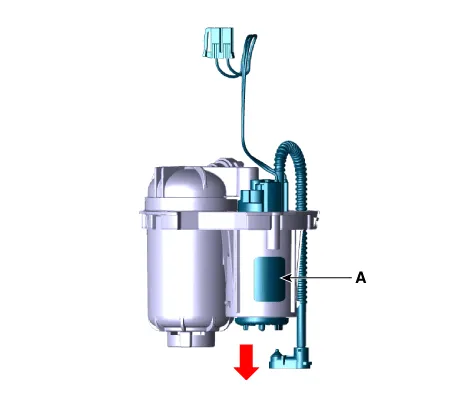

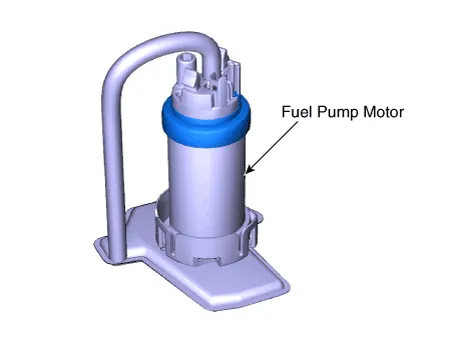

11.Remove the pump motor (A) in the arrow direction.

[B type]

1.Remove the fuel pump.(Refer to Fuel System - "Fuel Pump")

2.Disconnect the fuel sender connector (A).

3.Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.

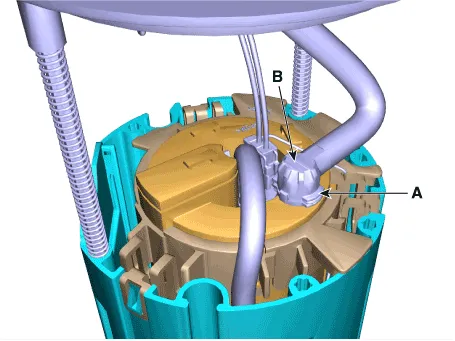

4.Remove the fixing pin (A) and then disconnect the fuel feed tube (B).

5.Disconnect the fuel pump motor connector (A).

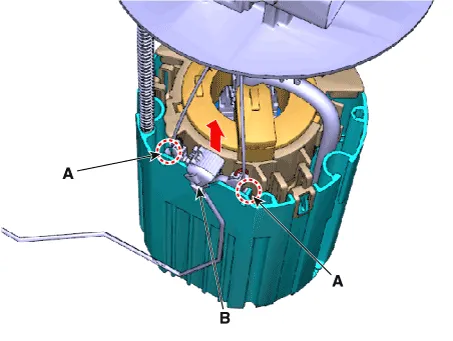

6.Release the fixing hook (A) and then remove the head assembly (B).

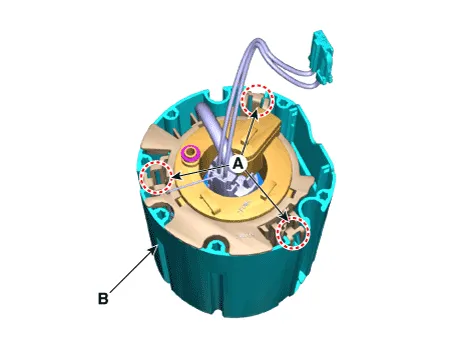

7.Release the fixing hook (A) and then remove the reservoir-cup (B).

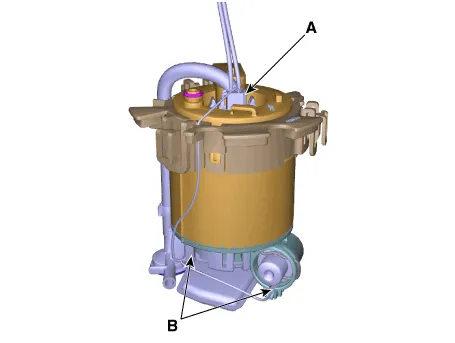

8.Disconnect the fuel pump motor connector (A).

9.Disconnect the ground cable (B).

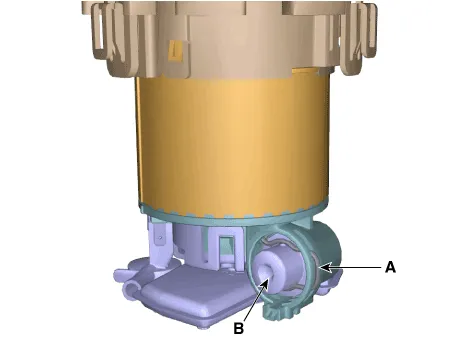

10.Remove the fixing pin (A) and then disconnect the fuel pressure regulator (B).

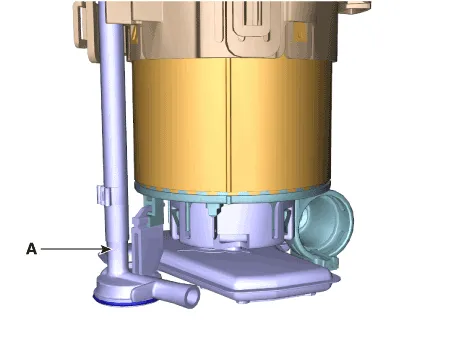

11.Release the fixing hook and then remove the assist pump (A).

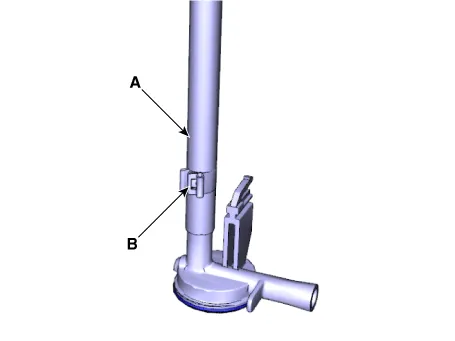

12.Separate the fuel pump hose (A) after releasing the clamp (B).



• Replace the clamp with a new one when reinstalling the clamp.

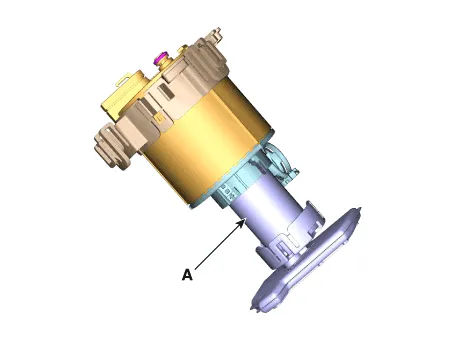

13.Remove the pump filter & fuel pump (A) after releasing the hooks.

- Installtion

1.Install in the reverse order of removal.
