Hyundai Santa Cruz: Blower / PWM Blower Module

- Replacement

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad under cover [RH].(Refer to Body - "Crash Pad Under Cover")

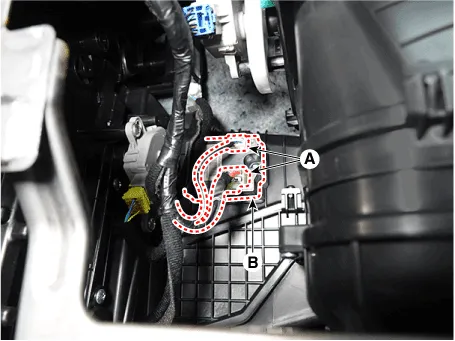

3.Disconnect the connector (A) and then remove the PWM blower module (B) after loosening the mounting screws.

4.Install in the reverse order of removal.
