Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Quarter Garnish

Hyundai Santa Cruz: Body Side Molding / Quarter Garnish

- Replacement

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

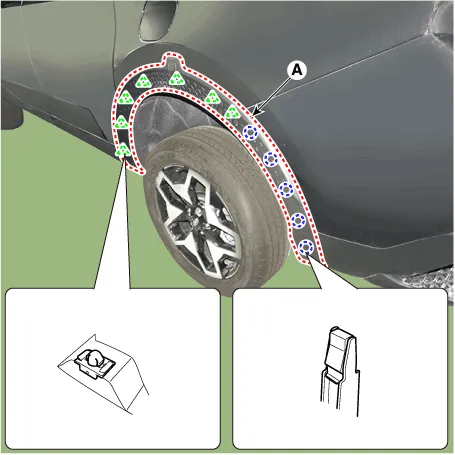

1.Using a screwdriver or remover, remove the quarter garnish (A).

2.To install, reverse removal procedure.

• Replace any damaged clips (or pin-type retainers).
