Hyundai Santa Cruz: Rear Door / Rear Door Belt Outside Weatherstrip

- Replacement

1.Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

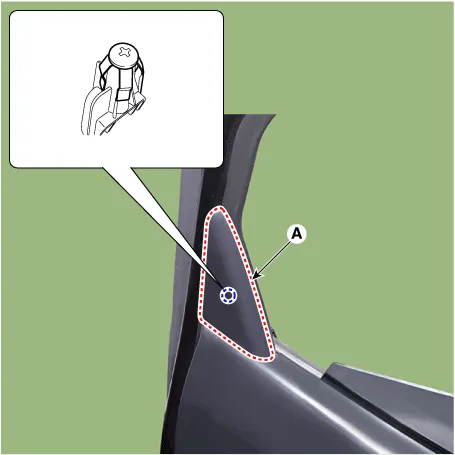

2.Remove the rear door delta inner cover (A).

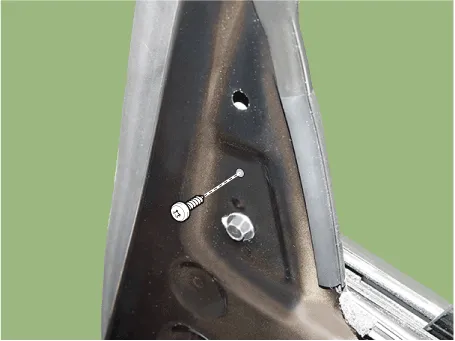

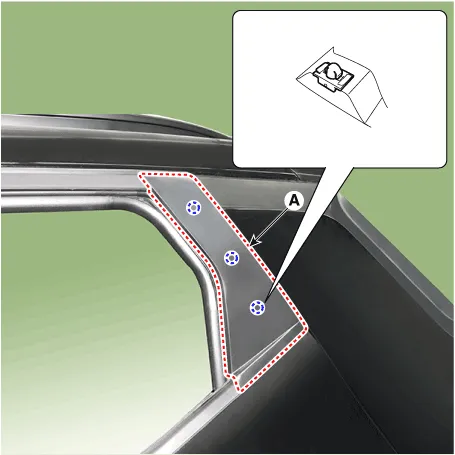

3.Loosen the mounting screw, remove the rear door frame garnish (A).

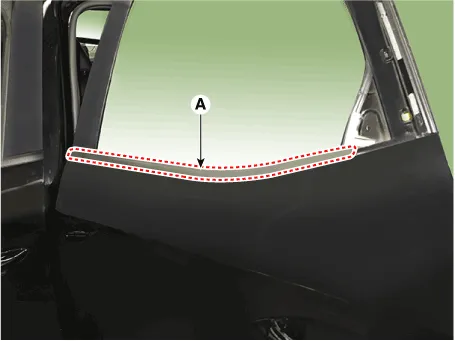

4.Remove the rear door belt outside weatherstrip (A).

5.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
