Hyundai Santa Cruz: Rear Seat Belt / Rear Seat Belt Buckle

- Components Location

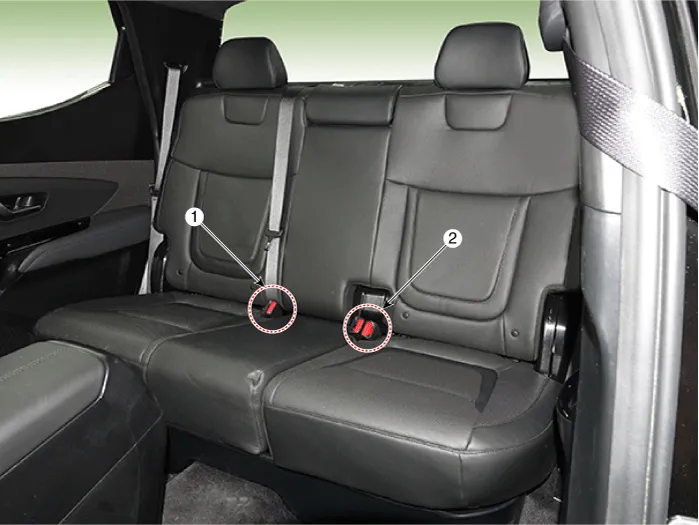

1. Rear seat belt buckle [RH]

2. Rear seat belt buckle [LH, CTR]


- Replacement [LH, CTR]

1.Pull up the rear seat cushion assembly.

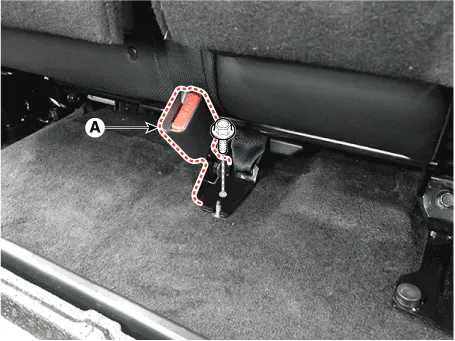

2.Loosen the mounting bolt, remove the rear seat belt buckle (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

3.To install, reverse removal procedure

[RH]

1.Pull up the rear seat cushion assembly.

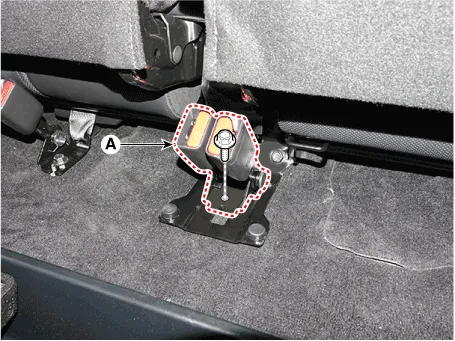

2.Loosen the mounting bolt, remove the rear seat belt buckle (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

3.To install, reverse removal procedure
