Hyundai Santa Cruz: Fender / Repair procedures

- Replacement



• When removing the fender, wrap protective tape around a screwdriver or remover not to damage components

• Put on gloves to prevent hand injuries

1.Remove the front bumper.(Refer to Front Bumper - "Front Bumper Assembly")

2.Remove the head lamp.(Refer to Body Electrical System - "Head Lamp")

3.Remove the front wheel guard.(Refer to Body Side Molding - "Front Wheel Guard")

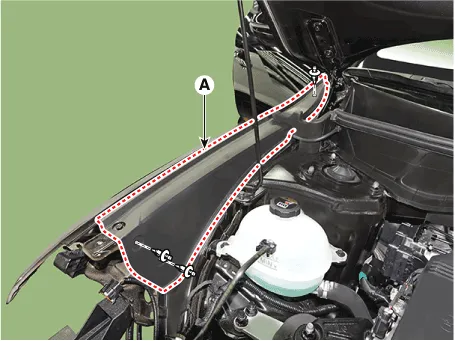

4.Loosen the mounting clips, remove the fender apron cover (A).

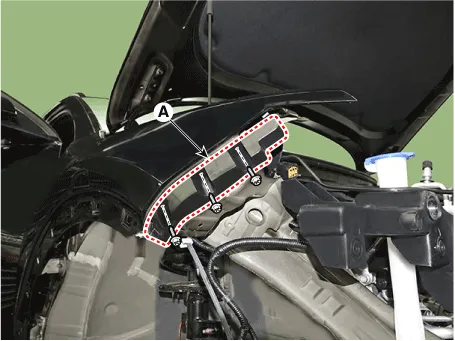

5.Loosen the mounting screws and then remove the front bumper side mounting bracket (A).

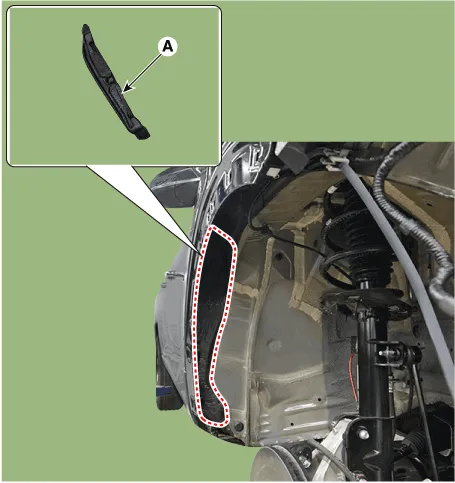

6.Remove the fender insulator (A).

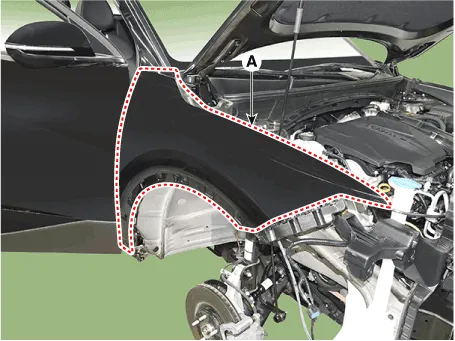

7.Loosen the mounting bolts remove the fender assembly (A).

Tightening torque :7.7 - 11.6 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

8.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).

    Components and Components Location
    - Component Location 1. Fender assembly ...
