Hyundai Santa Cruz: Fuel Filler Door / Repair procedures

- Replacement [Fuel filler door cover]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

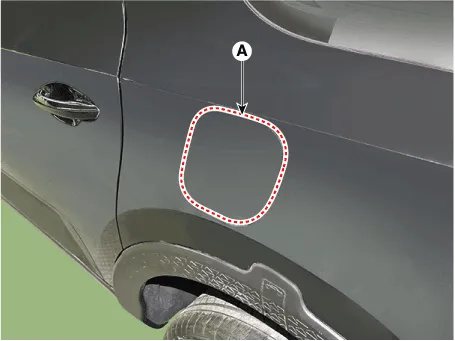

1.Open the fuel filler door (A).

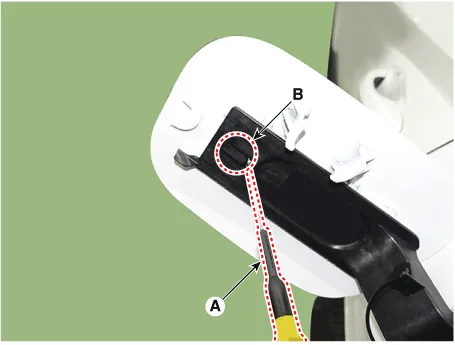

2.Using a flat tip driver (A) unlock the lock pin (B) and then remove the fuel filler door cover (C).

3.To install, reverse removal procedure.

[Fuel filler door assembly]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Disconnect the negative (-) battery terminal.

2.Open the fuel filler door (A).

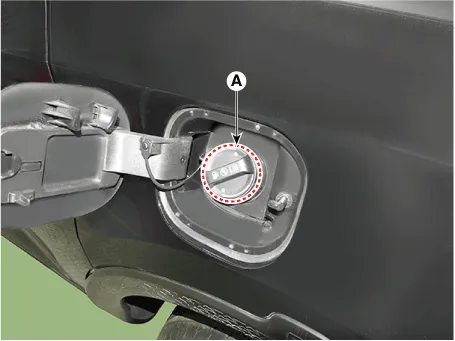

3.Open the fuel filler door cap (A).

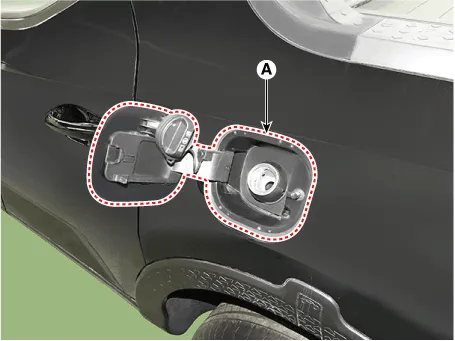

4.Using a screwdriver or remover, remove the fuel filler door assembly (A).

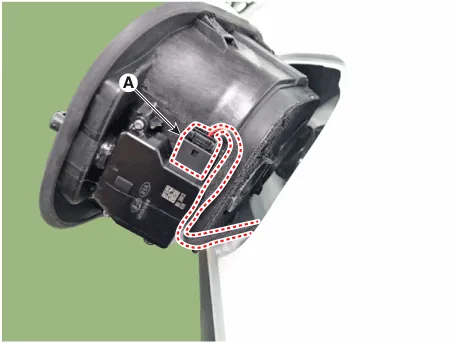

5.Disconnect the fuel filler door connector (A).

6.To install, reverse removal procedure.
