Hyundai Santa Cruz: Horn / Repair procedures

- Removal

1.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly")

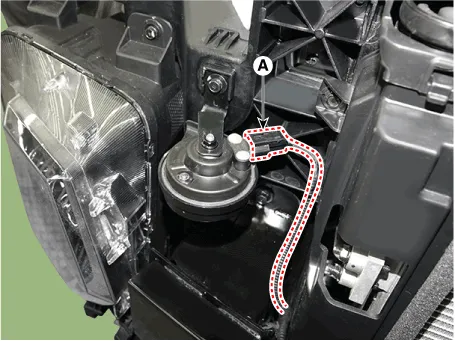

2.Disconnect the horn connector (A).[High pitch]

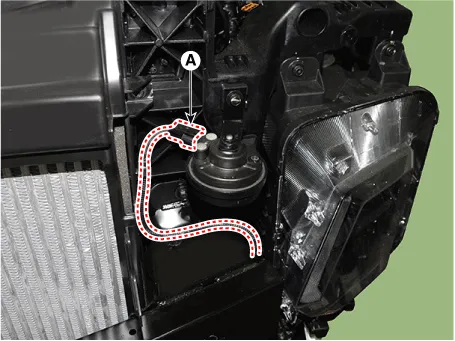

[Low pitch]

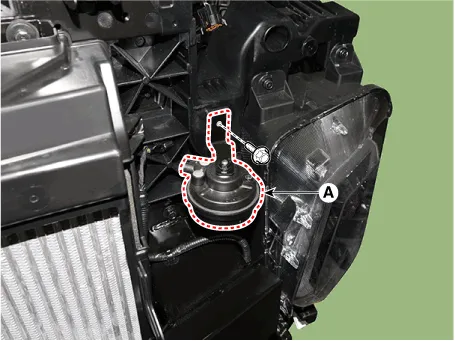

3.Loosen the mounting bolt and remove the horn (A).[High pitch]

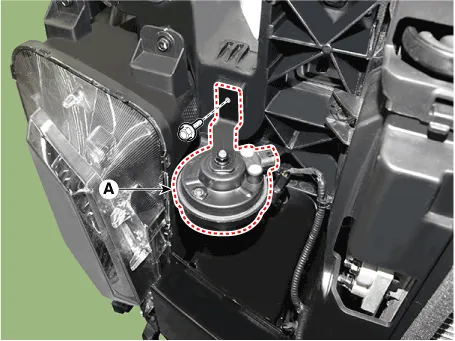

[Low pitch]

- Installation

1.Install the horns after connecting the horn connectors.

2.Install the front bumper assembly.

    Components and Components Location
    - Component Location 1. Horn switch2. Horn relay 3. Horn (Low pitch)4. Horn (High pitch)5. Clock spring ...
