Hyundai Santa Cruz: Cooling System / Reservoir Tank

- Removal and Installation

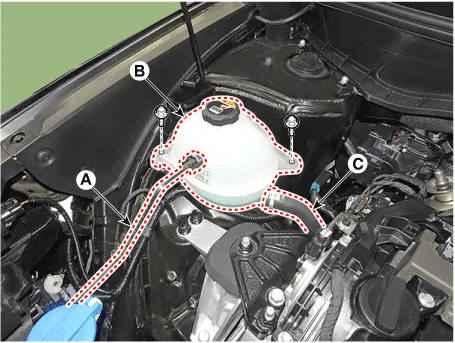

1.Disconnect the over flow hose (A) and reservoir tank hose (C).

2.Remove the reservoir tank (B).

Tightening torque :7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

3.Install in the reverse order of removal.
