Hyundai Santa Cruz: Airbag Module / Side Airbag (SAB) Module

- Description The Side Airbags (SAB) are installed inside the front seat and protects the driver and passenger from danger when side crash occurs. The SRSCM determines deployment of side airbag by using Side Impact Sensor (SIS) signal.



• Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.

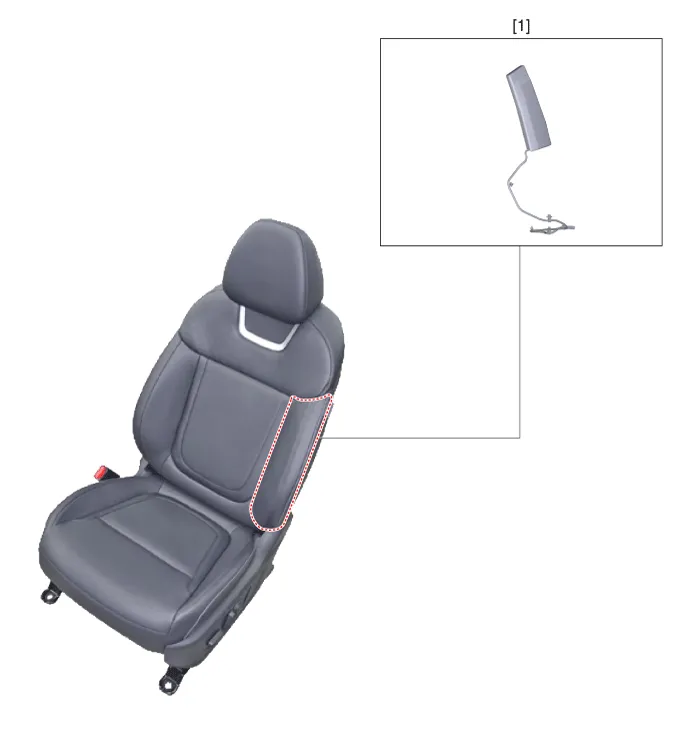

- Components Location

1. Side airbag (SAB)


- Removal

1.Disconnect the battery negative terminal.



• After disconnecting the cables, wait at least 3 minutes.

2.Remove the front seat back cover.(Refer to Body - "Front Seat Back Cover")

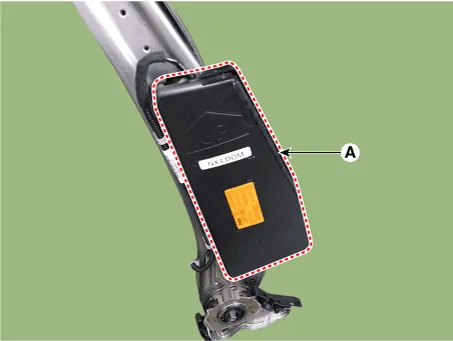

3.Loosen the mounting nuts, remove the side airbag module (A).

Tightening torque :5.9 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.8 lb-ft)

- Installation

1.Install in the reverse order of removal.

2.After installing the airbag module, confirm proper system operation.



• Switch ON the ignition. The SRS indicator light should turn on for about six seconds and then off.
