Hyundai Santa Cruz: Smart Key System / Smart Key

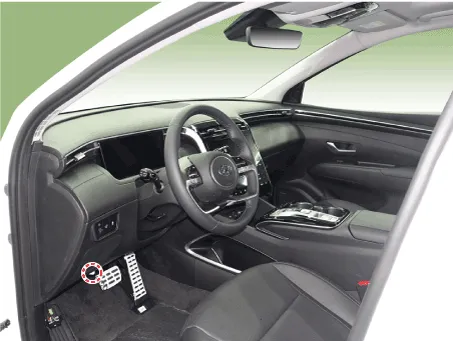

1.Connect the DLC cable of diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on diagnostic tool.
2.Select the 'S/W Management' and 'Car model'.

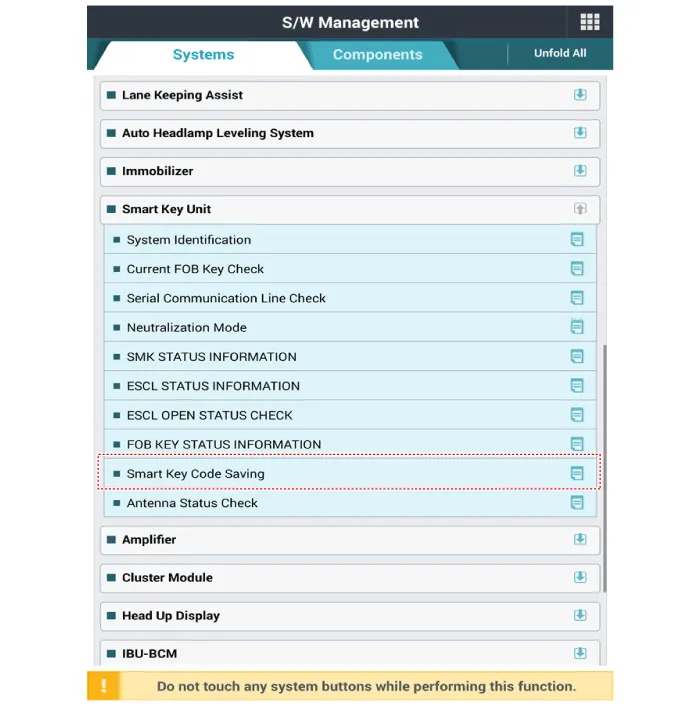

3.Select the 'Smart Key Unit' and 'Smart Key Code Saving'.

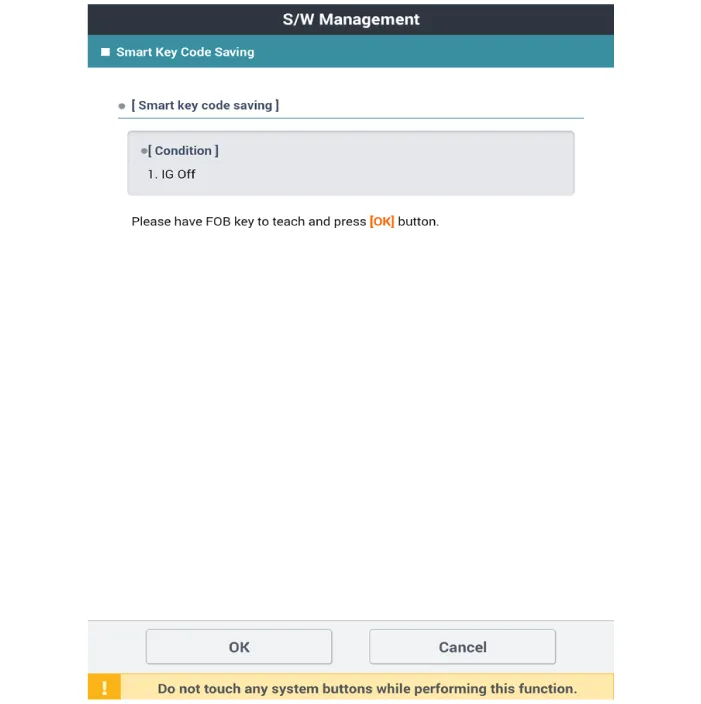

4.Follow the instructions on the screen.
Smart Key Diagnostic
- Inspection
Self Diagnosis With Scan Tool
It will be able to diagnose defects of SMART KEY system with diagnostic
tool quickly. diagnostic tool can operates actuator forcefully,
input/output ...
Smart Key Unit
- Components (1)
Integrated Body Control Unit (IBU)
Connector Pin Information
NoConnector AConnector BConnector CConnector D
1Speed_input-ECU groundBlower motor operate_output
2-Rear washer ...
