Hyundai Santa Cruz: Engine Electrical System / Specifications

- Service Data Ignition System Ignition Coil

ItemSpecification
Rated Voltage (V)14V
Secondary Coil [Engine 1000RPM standard] Input voltage (V) 14V
Dwell Time (ms) 6.1
Spark current (mA) More than 124
Spark duration time (ms) More than 2.0
Igniter voltage (V) 480 - 550
Pin 4

ItemSpecification
Engine Speed (RPM)1000200030004000500060007000
Dwell Time (ms)6.15.24.23.83.53.22.6
Secondary Coil Voltage (kV)40404040393835

Spark plug
ItemSpecification
TypeSILZKR8J9GS
Gap0.8 - 0.9 mm
(0.0315 - 0.0354in.)
Electrode MaterialIRIDIUM

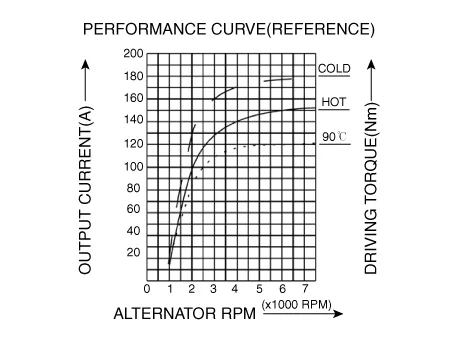

Charging System Alternator
ItemSpecification
Rated voltage13.5V, 150A
Speed in use1,000 - 18,000RPM
Pin1 (LIN)
Pulley Type PCD pulley

Battery ▷ CMF68L-DIN
ItemSpecification
Model typeCMF68L-DIN
Capacity [20HR/5HR] (AH)68 / 54
Cold Cranking Amperage (A)600
Reserve Capacity (Min)110
Specific Gravity 1.25 - 1.31 [25°C (77°F)]
Voltage (V) 12

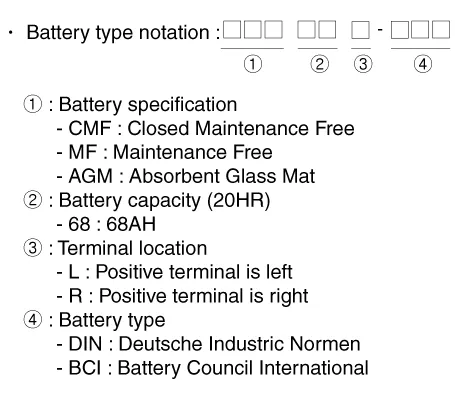

• Model type description

• Cold Cranking Ampere (CCA) : A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.

– The maximum current that a fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds while maintaining a voltage of at least 7.2 volts for a 12-volt battery.

– The higher the CCA rating, the greater the starting power of the battery.

• RESERVE CAPACITY (RC) : A battery industry rating that defines the battery's ability to power a vehicle with an inoperative alternator or fan belt.

– The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.

– The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

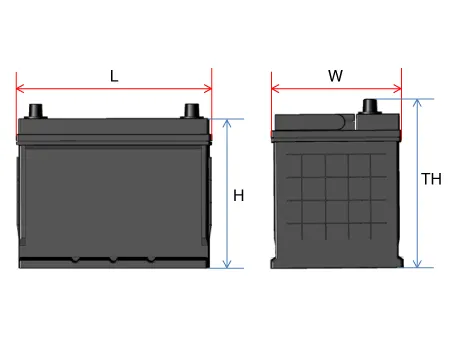

[BCI Type]
Capacity
(5HR/20HR)
LengthWidthHeightTotal Height
L (mm)W (mm)T (mm)TH (mm)
28/35188 - 192126 - 130198 - 202218 - 222
32/40194 - 198133 - 137199 - 203223 - 227
36/45203 - 207173 - 177200 - 204221 - 225
44/55213 - 217173 - 177198 - 202218 - 222
48/60228 - 232173 - 177200 - 204221 - 225
54/68258 - 262173 - 177198 - 202220 - 224
56/70258 - 262173 - 177198 - 202223 - 227
64/80274 - 278170 - 174198 - 202221 - 225
70/88349 - 353172 - 176186 - 200183 - 187
72/90300 - 304170 - 174200 - 204221 - 225
76/95294 - 298172 - 176198 - 202220 - 224
80/100326 - 330170 - 174203 - 207225 - 229

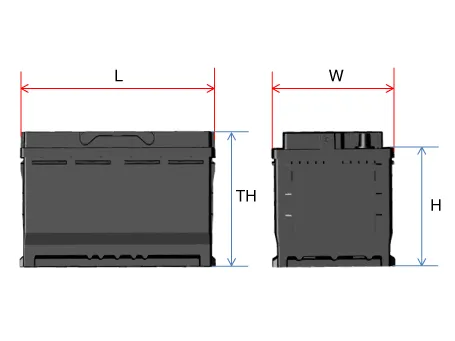

[DIN Type]
Capacity
(5HR/20HR)
LengthWidthHeightTotal Height
L (mm)W (mm)T (mm)TH (mm)
36/45205 - 207173 - 175164 - 168188 - 190
48/60205 - 207173 - 175164 - 168188 - 190
54/68205 - 207173 - 175164 - 168188 - 190
64/80205 - 207173 - 175164 - 168188 - 190
72/90205 - 207173 - 175164 - 168188 - 190
80/100205 - 207173 - 175164 - 168188 - 190
88/110205 - 207173 - 175164 - 168188 - 190

[AGM DIN Type]
Capacity
(5HR/20HR)
LengthWidthHeightTotal Height
L (mm)W (mm)T (mm)TH (mm)
40/50205 - 207173 - 175164 - 168188 - 190
48/60227 - 229173 - 175164 - 168188 - 190
56/70276 - 278173 - 175164 - 168188 - 190
64/80312 - 314173 - 175164 - 168188 - 190
72/90351 - 353173 - 175164 - 168188 - 190
84/105392 - 394173 - 175164 - 168188 - 190

Starting System Starter
ItemSpecification
Rated voltage12V, 1.2kW
The number of pinion teeth11
PerformanceAmpereMax. 80 A
[No-load, 11.0V]SpeedMin. 3,100 RPM
