Hyundai Santa Cruz: Convenient Features / Sunroof

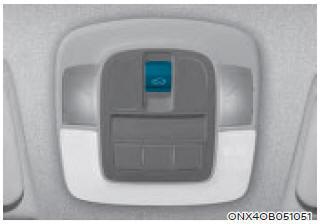

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof switch located on the overhead console.
.jpg)
The sunroof can only be operated when the ignition switch or Engine Start/Stop button is in the ON or START position.
The sunroof can be operated for approximately 3 minutes after the ignition switch or Engine Start/Stop button is in the ACC or LOCK/OFF position. However, if the front door is open, the sunroof cannot be operated even within the 3 minute period.
WARNING
- Never adjust the sunroof or sunshade while driving. This could result in loss of control and an accident that may cause injury, or property damage.
- Do not leave the engine running and the key in your vehicle with unsupervised children. Unattended children could operate the sunroof, which could result in serious injury.
- Do not sit on the top of the vehicle. It may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof bars are installed on the vehicle or when there is luggage on the roof.
