Hyundai Santa Cruz: Cooling System / Water pump

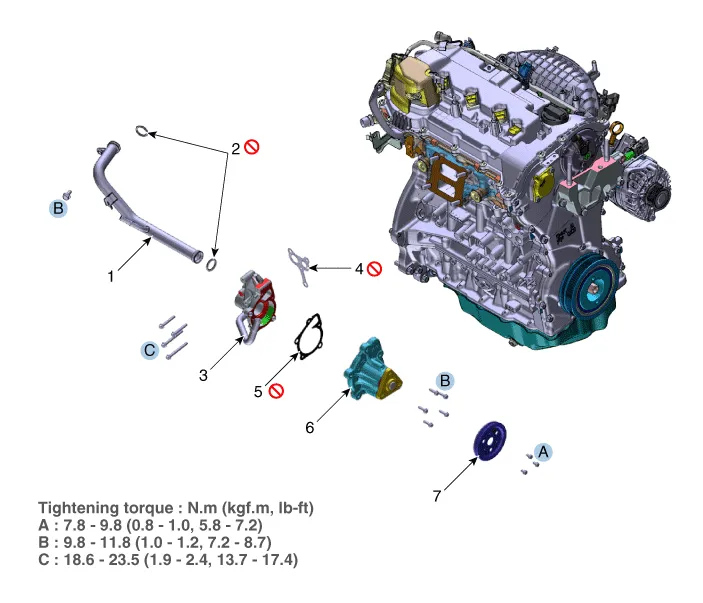

- Components

1. Water inlet pipe
2. O-ring
3. Water pump housing
4. Water pump housing gasket
5. Water pump gasket
6. Water pump
7. Water pump pulley


- Removal and Installation Water Pump

1.Disconnect the battery negative terminal.

2.Drain the coolant by loosening the drain plug.(Refer to the Cooling System - "Coolant")

3.Remove the water pump belt.(Refer to the Drive Belt System - "Drive Belt")

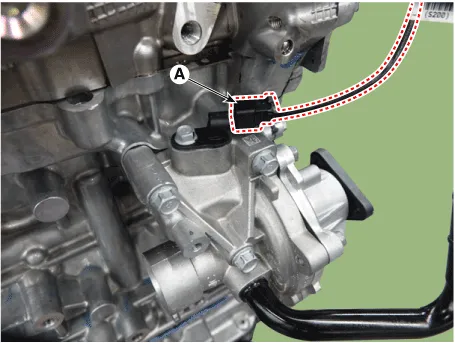

4.Disconnect the water temperature sensor connector (A).

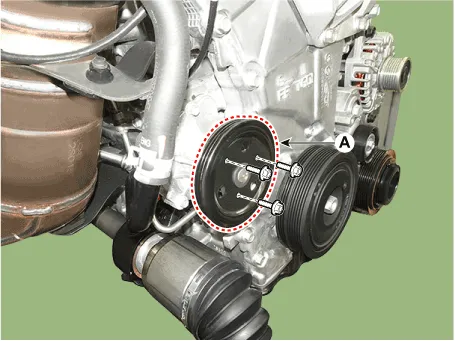

5.Remove the water pump pulley (A).

Tightening torque : 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

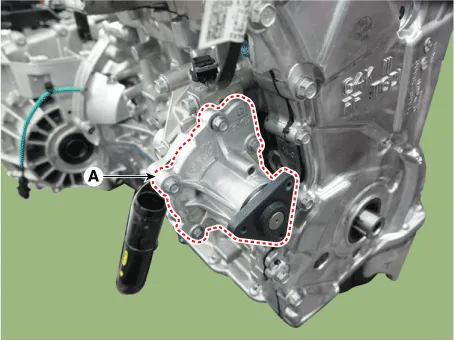

6.Remove the water pump (A).

Tightening torque :9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

7.Remove the warm up catalytic converter(WCC).(Refer to the Intake And Exhaust System - "Turbocharger & Exhaust Manifold")

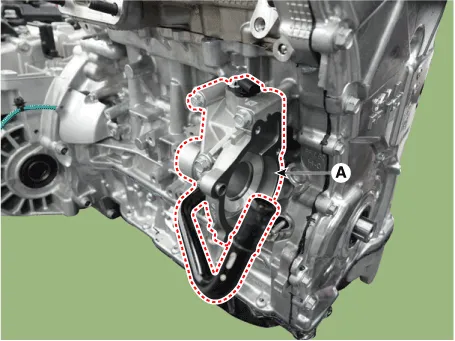

8.Remove the water pump housing (A) with the gastket.

Tightening torque :18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

9.Install in the reverse order of removal.



• Always use the new gasket.

• Always use the new water inlet pipe O-ring.

• When installing the water pump, apply anti-freeze or soapy water to O-ring.

10.Fill the coolant.(Refer to the Cooling System - "Coolant")



• The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.

11.Check the coolant leakage by starting up the engine.

12.Recheck the coolant level.
