Hyundai Santa Cruz: LCD Display Messages for Vehicles Equipped with Smart Key / Wiper

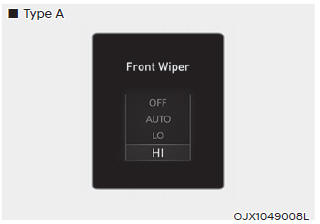

This indicator displays which wiper speed is selected using the wiper control.
You can activate or deactivate Wiper/ Lights display function from the User Settings menu in the cluster LCD display.
Lights
This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the User
Settings menu in the cluster LCD d ...
Other display Messages
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
...
