Hyundai Santa Cruz: Infotainment System / Antenna

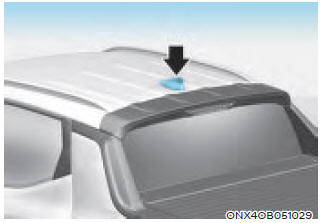

Shark fin antenna

The roof antenna transmits and receives wireless signals such as AM/FM, SXM, GNSS, LTE, etc.

Information

The signals which the antenna can transmit and receive vary by vehicle option.
