Hyundai Santa Cruz: Bed Lid / Bed Weatherstrip

- Replacement

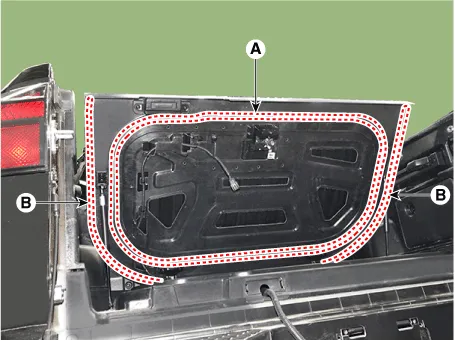

1.Remove the bed weatherstip (A), (B).

2.To install, reverse removal procedure.
