Hyundai Santa Cruz: Bed Lid / Bed Latch Assembly

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

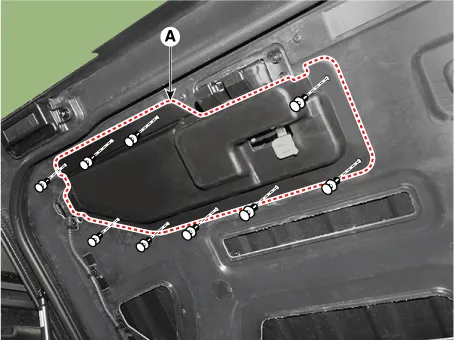

1.Loosen the mounting clips, remove the bed floor latch cover (A).

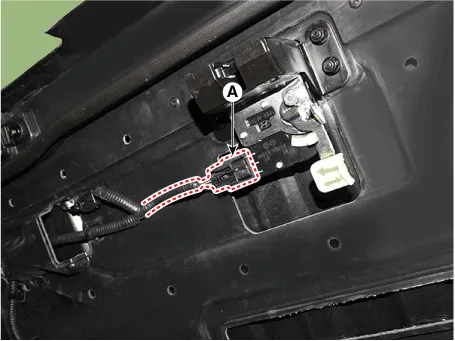

2.Disconnect the bed latch connector (A).

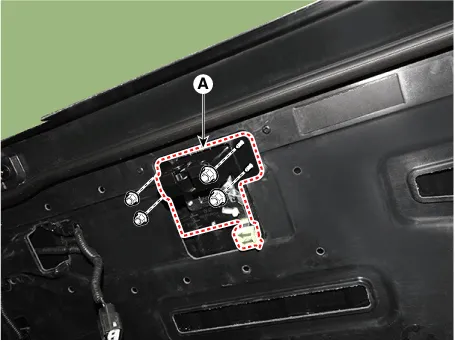

3.Loosen the mounting nuts, remove the bed latch assembly (A).

Tightening torque :6.9 - 10.8 N.m (0.7 - 1.1kgf.m , 5.1 - 8.0 lb-ft)

4.To install, reverse removal procedure.



• Make sure the connector is connected properly.

• Replace any damaged clips (or pin-type retainers).
