Hyundai Santa Cruz: Bed Lid / Bed Gas Lifter
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.

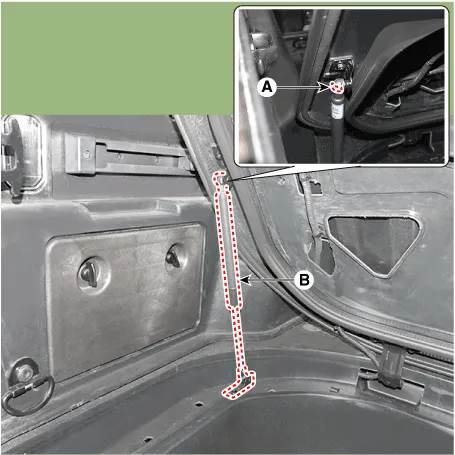

1.Using a screwdriver, lift up slightly the socket clips (A) of both ends on the lifter (B), and then remove the lifter from the bracket.
2.Push the socket of the lifter into the bracket for installation.
• Make sure the bed locks / unlocks and opens / closes properly.
