Hyundai Santa Cruz: Bed Lid / Bed Tonneau Cover Assembly

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• When removing and installing the bed top rail, an assistant is needed.

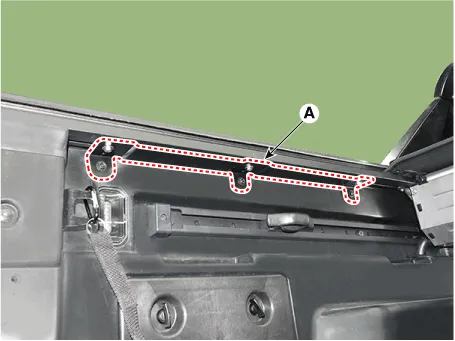

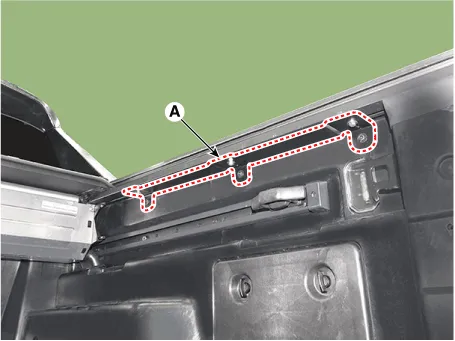

1.Remove the bed top rail mounting bracket (A).

Tightening torque :6.9 - 10.8 N.m (0.7 - 1.1kgf.m , 5.1 - 8.0 lb-ft)

[LH]

[RH]

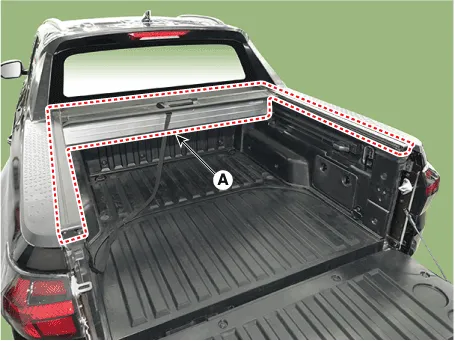

2.Remove the bed tonneau cover assembly (A).

3.To install, reverse removal procedure.
