Hyundai Santa Cruz: Bed Lid / Bed Top Rail Trim

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

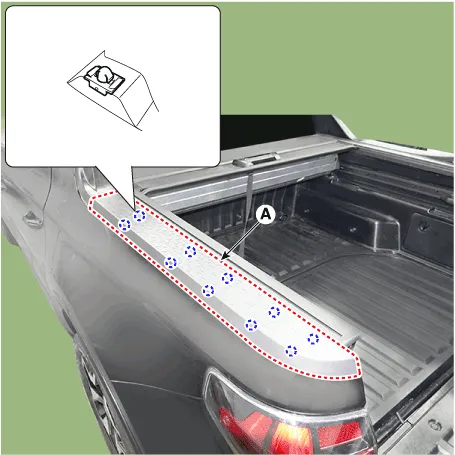

1.Remove the bed top rail trim (A).

2.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
