Hyundai Santa Cruz: Bed Lid / Repair procedures

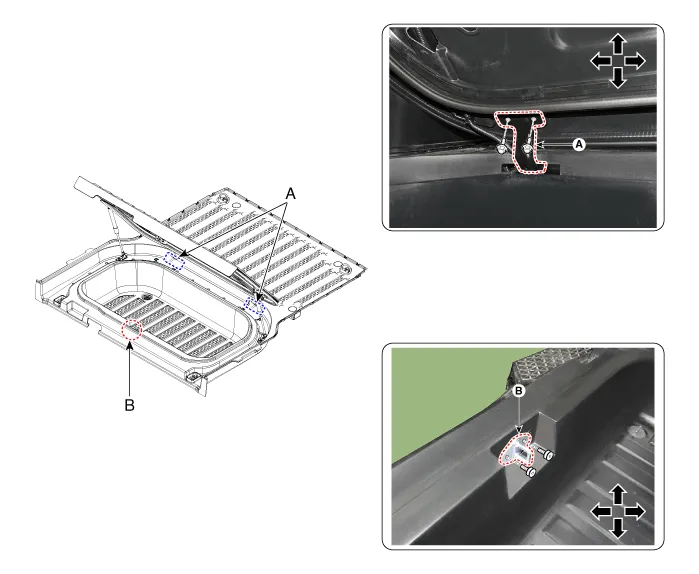

1.Place the car on a flat surface and check whether the body and bed are well-aligned.
2.After loosening bed gate hinge (A) mounting bolt, adjust the bed by moving it up and down or from side to side.
3.After loosening the tail bed striker (B) mounting bolts, adjust the striker by moving it back and forth or from side to side and then tighten the mounting bolts.
4.Make sure the bed opens or closes properly.
Bed Lid
...
Bed Top Rail Trim
- Replacement
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent h ...
