Hyundai Santa Cruz: Light Bulbs / License Plate Lamp Replacement

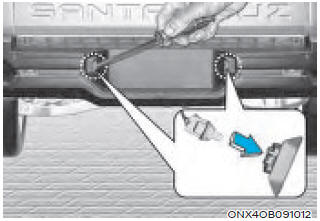

1. Using flat-blade screwdriver, gently pry on the inside edge of the lamp housing, compressing the metal clip on the opposite side. Once clip is compressed, lamp will rotate out of location in bumper.

2. Remove Bulb by rotating bulb in the direction indicated on holder.

3. Remove bulb from holder by pulling it straight out.

4. Install a new bulb.

5. Reinstall the lamp by compressing the clip in the bumper and rotating the lamp to hook the housing back into place on the bumper.

    High Mounted Stop Lamp and Top Mounted Bed Lamp / Side Mounted Bed Lamp Replacement
    [A] : High Mounted Stop Lamp [B] : Top Mounted Bed Lamp If the LED light source does not operate, have the system be inspected by an authorized HYUNDAI dealer. The LED light source cannot be repla ...

    Interior light replacement
    Map/Rear lamp (LED) If the LED lamp does not operate, have the system be inspected by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated u ...
