Hyundai Santa Cruz: Light Bulbs / Interior light replacement

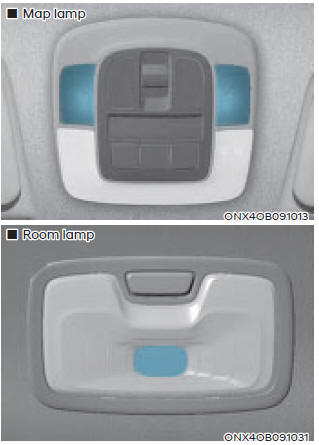

Map/Rear lamp (LED)

If the LED lamp does not operate, have the system be inspected by an authorized HYUNDAI dealer.

The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

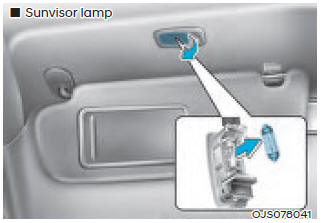

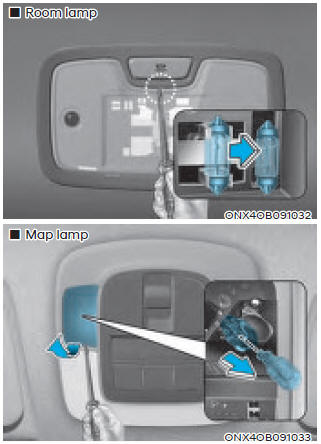

Map lamp, Room lamp and Sunvisor lamp (Bulb type)

1. Using a flat-head screwdriver, gently pry the lens from the interior light housing.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb into the socket.

4. Align the lens tabs with the interior light housing notches and snap the lens into place.

NOTICE

Be careful not to damage the cover, tab, and plastic housing.
