Hyundai Santa Cruz: Interior Trim / Center Pillar Trim

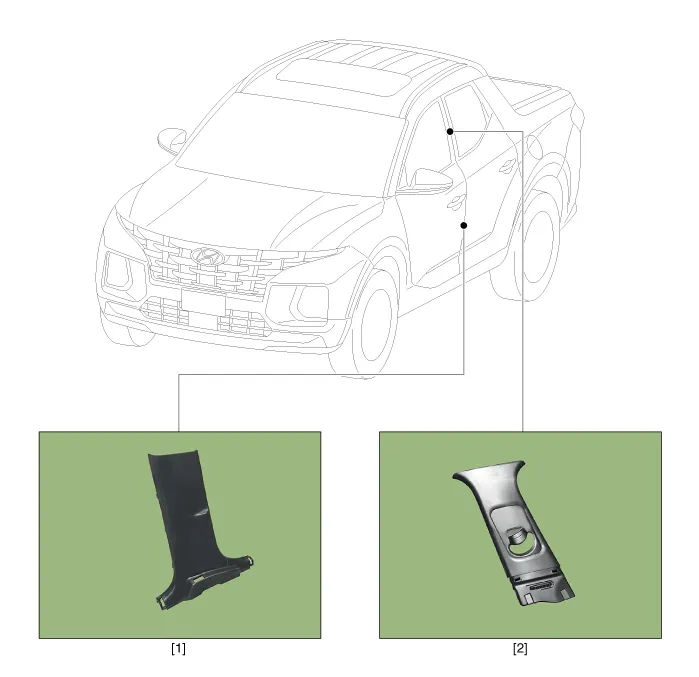

- Component Location

1. Center pillar lower trim
2.Center pillar upper trim


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

[Center Pillar Lower Trim]

1.Remove the front and rear door scuff trim.(Refer to Interior Trim -"Door Scuff Trim")

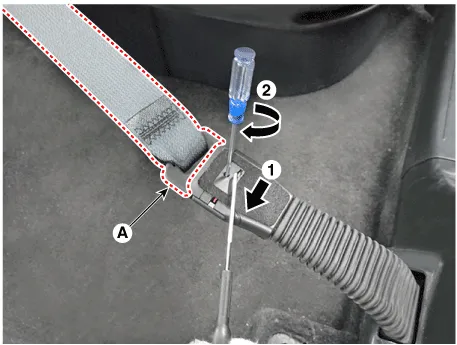

2.Separate the front seat belt lower anchor (A).

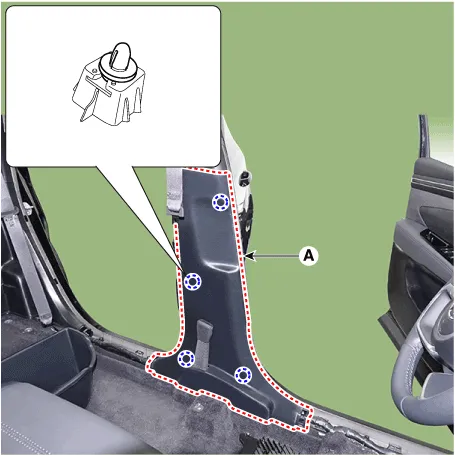

3.Using a screw driver or remover, remove the center pillar lower trim (A).

4.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).

[Center Pillar Upper Trim]

1.Remove the center pillar lower trim.

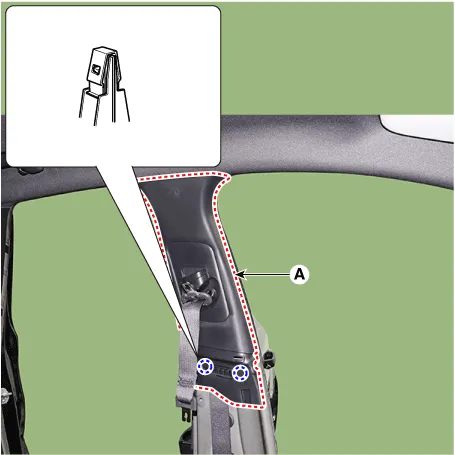

2.Using a screw driver or remover, remove the center pillar upper trim (A).

3.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
