Hyundai Santa Cruz: Lubrication System / Components and Components Location

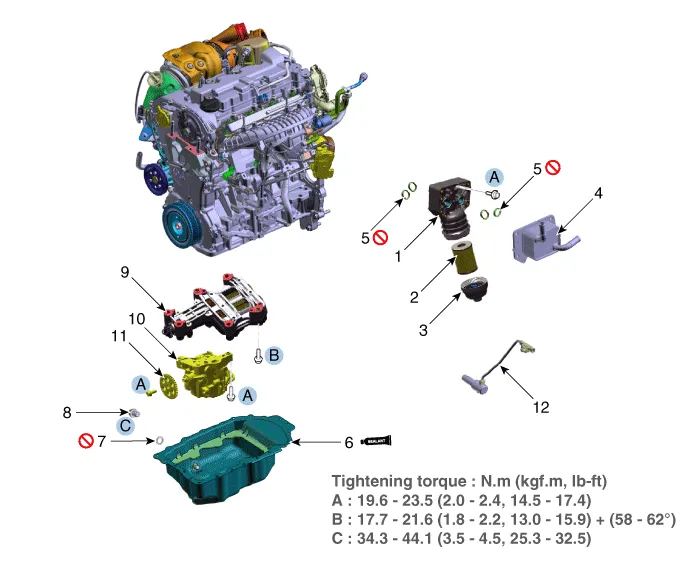

- Components

1. Oil filter body
2. Oil filter
3. Oil filter cap
4. Oil cooler
5. O-ring
6. Oil pan
7. Oil drain plug gasket
8. Oil drain plug
9. Balance shaft assembly
10. Oil pump
11. Oil pump sprocket
12. Oil Pressure control solenoid valve
