Hyundai Santa Cruz: Engine Control System / Crankshaft Position Sensor (CKPS)

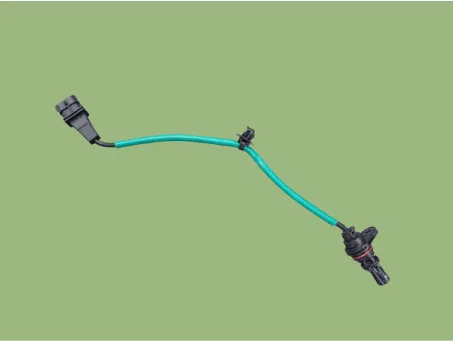

- Description Crankshaft Position Sensor (CKPS) detects the crankshaft position and is one of the most important sensors of the engine control system. If there is no CKPS signal input, the engine may stop because of CKPS signal missing. This sensor is installed on the transaxle housing and generates alternating current by magnetic flux field which is made by the sensor and the target wheel when engine runs.The target wheel consists of 58 slots and 2 missing slots on 360 degrees CA (Crank Angle).

- Specifications ▷ Type : Magentic field sensitive type
ItemSpecification
Air Gap [mm(in)]0.5 - 1.5 (0.01 - 0.05)

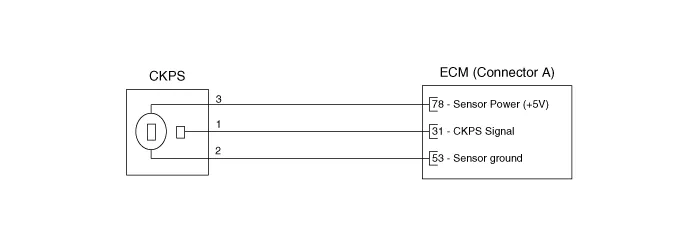

- Circuit Diagram

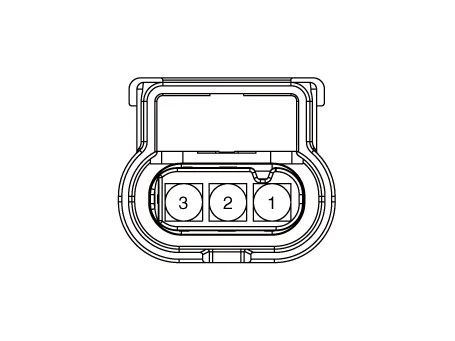

Harness Connector

- Inspection

1.Check the signal waveform of the CMPS and CKPS using the diagnostic tool.

Specification : Refer to "DTC Diagnostic Guide"

- Removal

1.Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

2. Remove the air cleaner assembly.(Refer to Engine Mechanical System - "Air Cleaner")

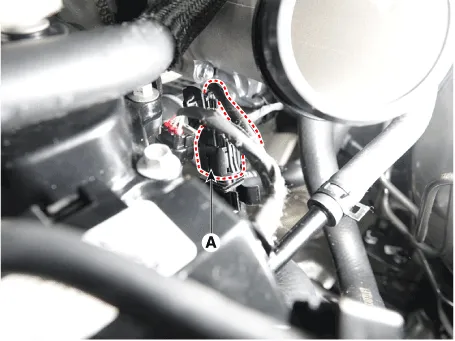

3. Disconnect the crankshaft position sensor connector (A).

4.Lift the vehicle.

5.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")

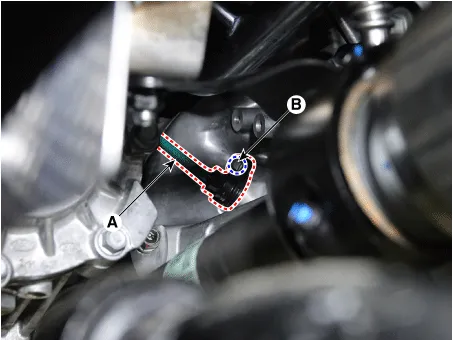

6.Remove the CKPS cover (A).

Tightening torque :9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

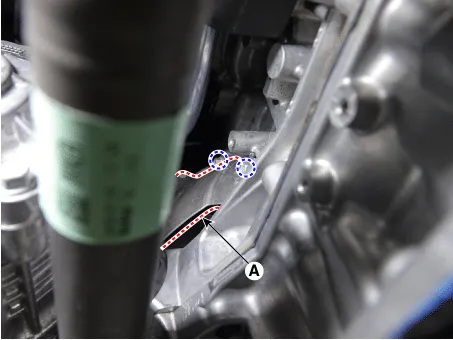

7.Remove the installation bolt (B), and then remove the crankshaft position sensor (A).

Tightening torque :9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

- Installation



• Install the component to the specified torques.

• If a part is dropped, replace it with a new one and discard the dropped part as invisible damage may be caused.

• Insert the sensor in the installation hole and be careful not to damage it.

1.Install in the reverse order of removal.
