Hyundai Santa Cruz: Charging System / Components and Components Location

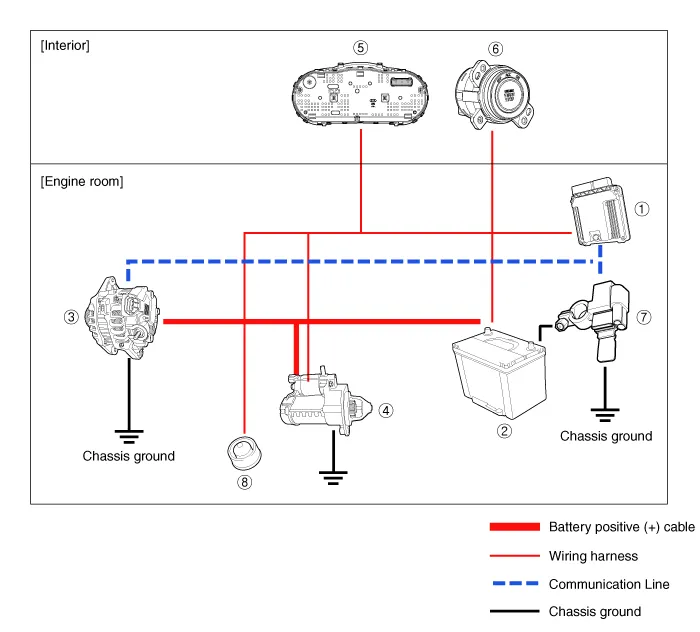

- Components

1. ECM
2. Battery
3. Alternator
4. Starter
5. Instrument Cluster
6. Ignition switch or start/stop button
7. Battery sensor
8. Hood switch


    Description and Operation
    - Description The charging system includes a battery, an alternator with a built-in regulator, and the charging indicator light and wire.The Alternator has eight built-in diodes, each rectifyin ...

    Troubleshooting
    - Troubleshooting     • Be careful not to short-circuit the wiring by the body or other wirings. • In case of discharging problem, measure dark current at all times. (Chargin ...
