Hyundai Santa Cruz: Dual Clutch System / Components and Components Location

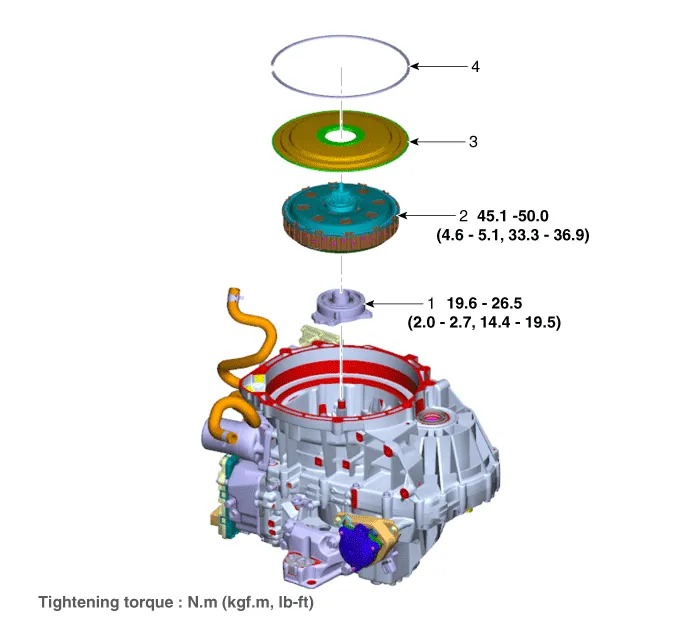

- Components and Components Location

1. Dual concentric slave cylinder
2. Dual clutch assmbly
3. Sealing cover
4. Snap ring




    Dual Clutch System
    ...

    Dual Clutch Assembly
    - Removal     • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.( ...
