Hyundai Santa Cruz: Coupling Assembly / Components and Components Location

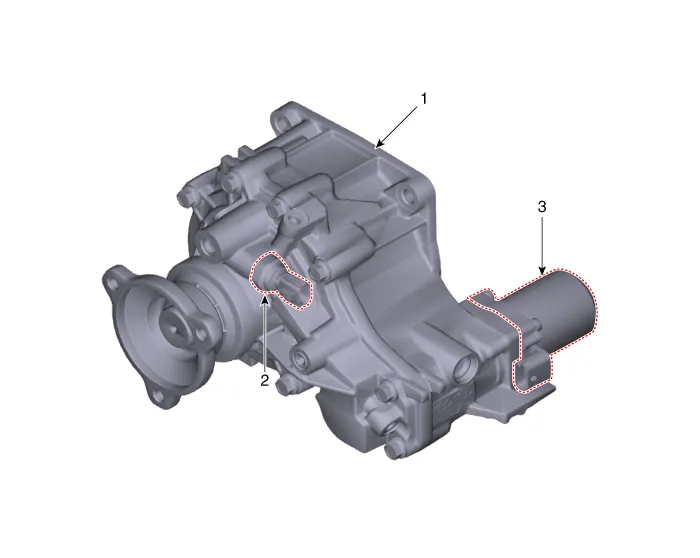

1. Coupling assembly
2. Pressure sensor
3. Oil hydraulic motor
Direct Electro Hydraulic Actuator Coupling
- Description
4WD ECU processes signals from various sensors and determines the
current road and driving conditions. The ECU then utilizes this
information to implement precision control over ...
