Hyundai Santa Cruz: Lighting System / Overhead Console Lamp

- Removal

1.Disconnect the negative (-) battery terminal.

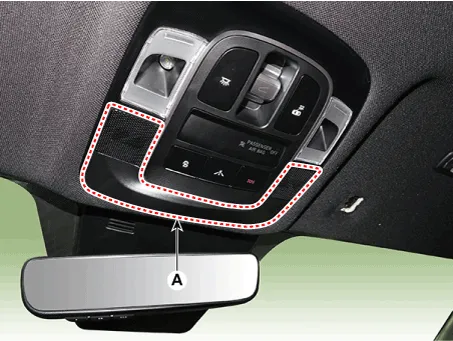

2.Remove the overhead console cover (A).

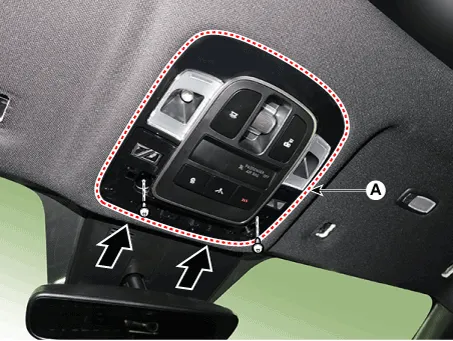

3.Remove the mounting screws.and then remove the overhead console (A).

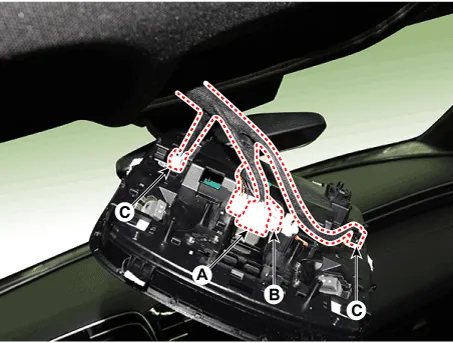

4.Remove the overhead console after disconnect the connectors. A : Sunroof connectorB : Main connectorC : MIC connector

- Installation

1.Install the overhead console lamp after connecting the connector.

2.Connect the negative (-) battery terminal.

- Replacement

1.Disconnect the negative (-) battery terminal.

2.Remove the overhead console.(Refer to Overhead Console Lamp)

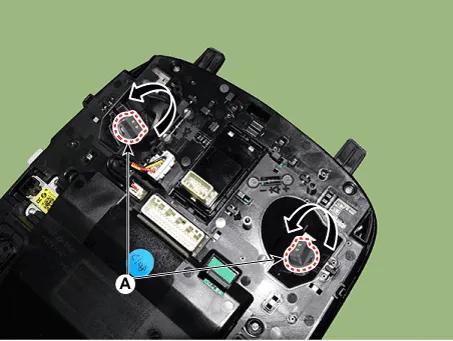

3.Remove the overhead console lamp bulb (A) after turning in the counterclockwise direction.

4.To install, reverse removal procedure.

    Room Lamp
    - Removal Vanity Lamp 1.Disconnect the negative (-) battery terminal. 2.Remove the vanity lamp (A). 3.Disconnect the vanity lamp connector (A). Room Lamp 1.Disconnect the negative (-) bat ...

    Hazard Lamp Switch
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the front monitor.(Refer to AVN System - "Front Monitor") 3.Remove the hazard switch (A). - Installation 1.Install the h ...
