Hyundai Santa Cruz: Lighting System / Hazard Lamp Switch

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the front monitor.(Refer to AVN System - "Front Monitor")

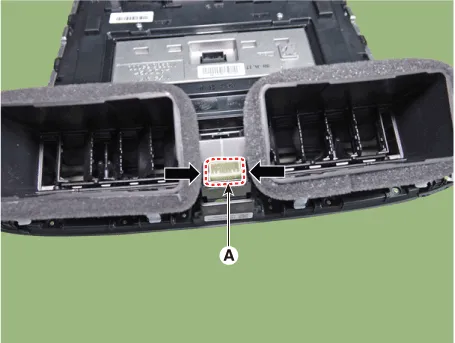

3.Remove the hazard switch (A).

- Installation

1.Install the hazard switch.

2.Install the front monitor.

3.Connect the negative (-) battery terminal.
