Hyundai Santa Cruz: Lighting System / Rheostat

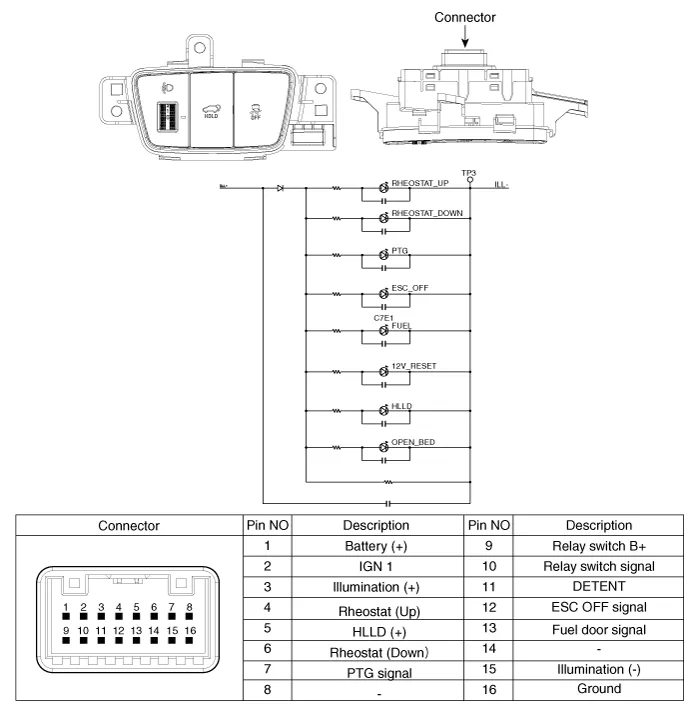

- Components

- Removal

1.Disconnct the negative (-) battery terminal.

2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")

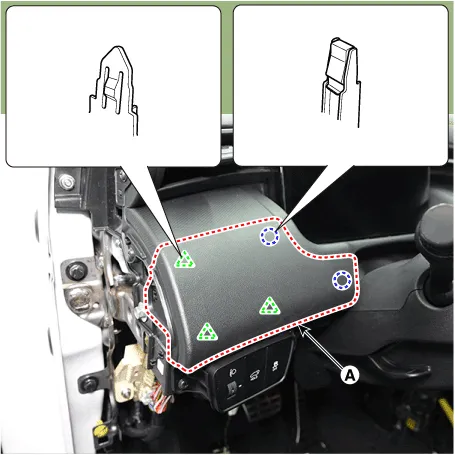

3.Loosen the mounting screw and remove the crash pad garnish [LH] (A).

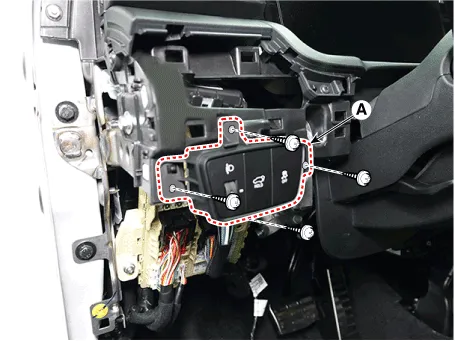

4.Loosen the mounting screws and remove the crash pad lower switch assembly (A).

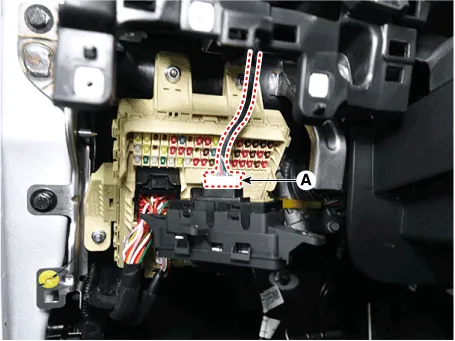

5.Disconnect the crash pad lower switch connector (A).

- Installation

1.Instahh the crash pad lower switch.

2.Install the crash pad garnish [LH].

3.Install the crash pad lower panel.

4.Connect the negative (-) terminal

    Hazard Lamp Switch
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the front monitor.(Refer to AVN System - "Front Monitor") 3.Remove the hazard switch (A). - Installation 1.Install the h ...

    License Lamps
    - Removal 1.Disconnct the negative (-) battery terminal. 2.Using a flat-tip screwdriver and remove the license lamp (A). 3.Disconnect the license lamp connector (A). - Installation 1.Con ...
