Hyundai Santa Cruz: Lighting System / License Lamps

- Removal

1.Disconnct the negative (-) battery terminal.

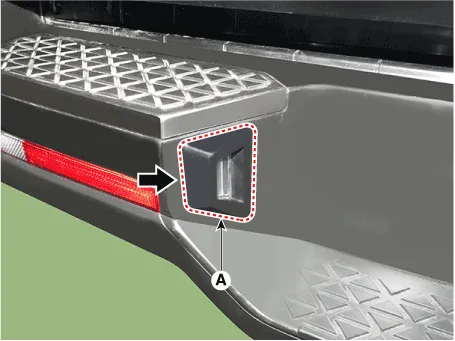

2.Using a flat-tip screwdriver and remove the license lamp (A).

3.Disconnect the license lamp connector (A).

- Installation

1.Connect the connector and install the license lamp.

2.Connect the negative (-) battery terminal.

- Removal

1.Disconnct the negative (-) battery terminal.

2.Remove the license lamp.

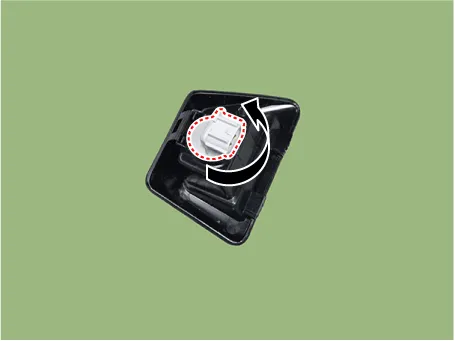

3.Remove the license lamp bulb after turning in the counterclockwise direction.

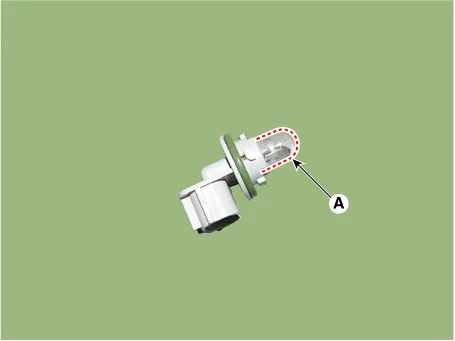

4.Replace the license lamp bulb (A).

5.To install, reverse removal procedure.

    Rheostat
    - Components - Removal 1.Disconnct the negative (-) battery terminal. 2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel") 3.Loosen the mounting screw and remove ...

    High Mounted Stop Lamp
    - Removal High Mounted Stop Lamp 1.Disconnect the negative (-) battery terminal. 2.Remove the rear spoiler.(Refer to Body - "Rear Spoiler") 3.Remove the high mounted stop lamp assembly (A) aft ...
