Hyundai Santa Cruz: Lighting System / High Mounted Stop Lamp

- Removal High Mounted Stop Lamp

1.Disconnect the negative (-) battery terminal.

2.Remove the rear spoiler.(Refer to Body - "Rear Spoiler")

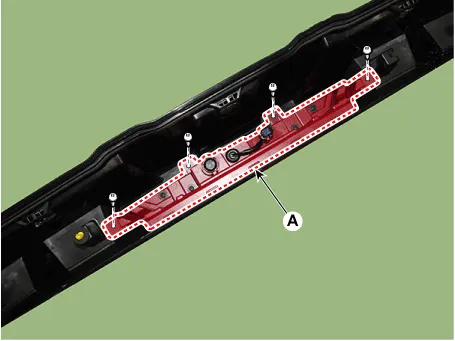

3.Remove the high mounted stop lamp assembly (A) after loosening screws (4EA).

- Top Mounted Bed Lamp (TMBL)

1.Disconnect the negative (-) battery terminal.

2.Remove the rear spoiler.(Refer to Body - "Rear Spoiler")

3.Remove the high mounted stop lamp assembly (A) after loosening screws (4EA).

- Installation High Mounted Stop Lamp

1.Install the high mounted stop lamp.

2.Install the rear spoiler.

3.Connect the negative (-) battery terminal.

Top Mounted Bed Lamp (TMBL)

1.Install the top mounted bed lamp (TMBL).

2.Install the rear spoiler.

3.Connect the negative (-) battery terminal.

    License Lamps
    - Removal 1.Disconnct the negative (-) battery terminal. 2.Using a flat-tip screwdriver and remove the license lamp (A). 3.Disconnect the license lamp connector (A). - Installation 1.Con ...

    Rear Combination Lamp
    - Removal     • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand ...
