Hyundai Santa Cruz: Lane Keeping Assist (LKA) / Lane Keeping Assist Settings

Setting features

Lane Safety

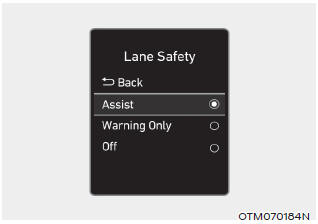

With the engine on, select 'Driver Assistance > Lane Safety' from the Settings menu to set whether to use each function.

- If ‘Assist’ is selected, Lane Keeping Assist will automatically assist the driver’s steering when lane departure is detected to help prevent the vehicle from moving out of its lane.
- If 'Warning Only' is selected, Lane Keeping Assist will warn the driver with an audible warning when lane departure is detected. The driver must steer the vehicle.
- If ‘Off’ is selected, Lane Keeping Assist turns off. The indicator light turns off on the cluster.

WARNING

  • If 'Warning Only' is selected, steering is not assisted.
  • Lane Keeping Assist does not control the steering wheel when the vehicle is driven in the middle of the lane.
  • The driver should always be aware of the surroundings and steer the vehicle if ‘Off’ is selected.

Turning Lane Keeping Assist On/Off (Using the Lane Driving Assist button on the steering wheel)

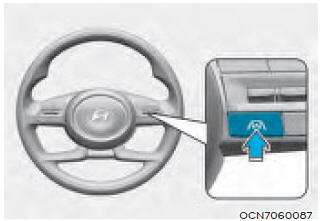

With the engine on, press and hold the Lane Driving Assist button located on the steering wheel to turn on Lane Keeping Assist. The white indicator light illuminates on the cluster.

Press and hold the button again to turn off the function.

If the engine is restarted, Lane Keeping Assist will maintain the last setting.

Information

The Lane Driving Assist button is used for both the Lane Keeping Assist function and the Lane Following Assist function.

Note that quickly pressing and releasing the button will enable or disable the Lane Following Assist feature, whereas pressing and holding the button will enable or disable the Lane Keeping Assist feature.

Warning Volume

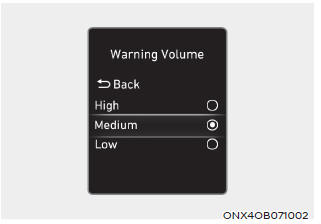

With the engine on, select 'Driver Assistance > Warning Volume' from Settings menu to change the Warning Volume to ‘High’, ‘Medium’ or ‘Low’ for Lane Keeping Assist.

If you change the Warning Volume, the Warning Volume of other Driver Assistance systems may change.
