Hyundai Santa Cruz: ESC (Electronic Stability Control) System / Components and Components Location

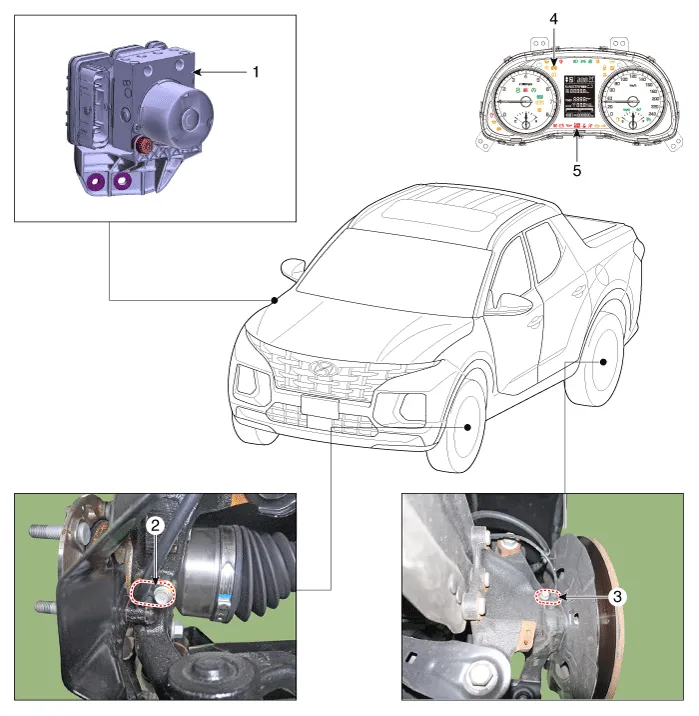

1. ESC Control unit (HECU)
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. ABS warning lamp
5. Parking brake / EBD
Description and Operation
- Description of ESP
Electronic Stability Control (ESC) recognizes critical driving
conditions, such as panic reactions in dangerous situations, and
stabilizes the vehicle by individual wheel b ...
Troubleshooting
- Failure Diagnosis
1.In principle, ESC and TCS controls are prohibited in case of ABS failure.
2.When ESC or TCS fails, only the failed system control is prohibited.
3.However, when the soleno ...
