Hyundai Santa Cruz: Audio/AVNT System / Components and Components Location

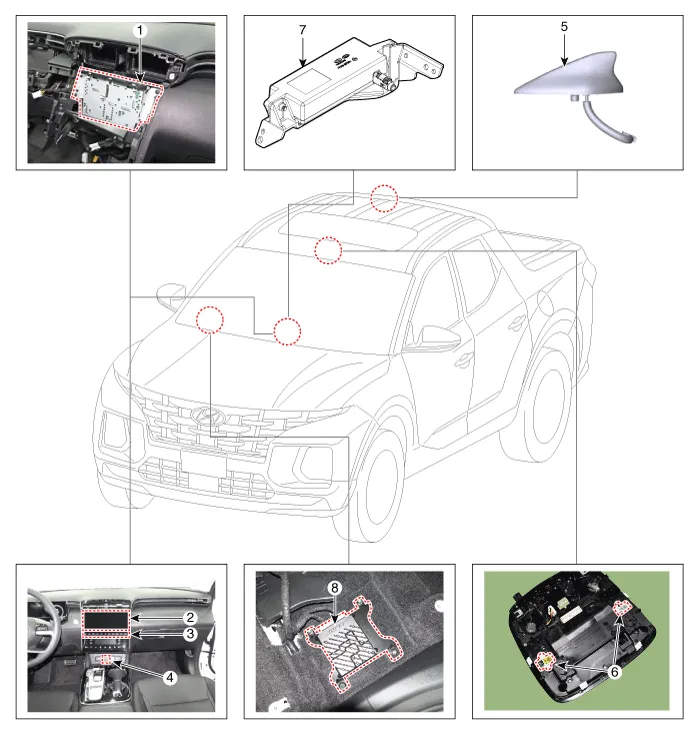

- Components Location

1. AVN (A/V & Navigation head unit)
2. Front monitor
3. AVN switch
4. USB jack
5. Roof antenna
6. Mic
7. Crash pad antenna
8. External amplifier


    Description and Operation
    - Description AVN system The AVN system has improved information search and easiness of manipulation for the driver by simplifying the system operation experience and unifying the display of t ...

    Specifications
    - Specifications ItemSpecification Power sourceDC 14.4V (-) ground Frequency range / Channel spaceFM : 87.5 - 108.0 MHz / 100 KHzAM : 531 - 1602 KHz / 9 KHz Tuning typePLL SYNTHESIZED TUNING Im ...
