Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Body Electrical System / Integrated Body Control Unit (IBU) / Components and Components Location
Hyundai Santa Cruz: Integrated Body Control Unit (IBU) / Components and Components Location

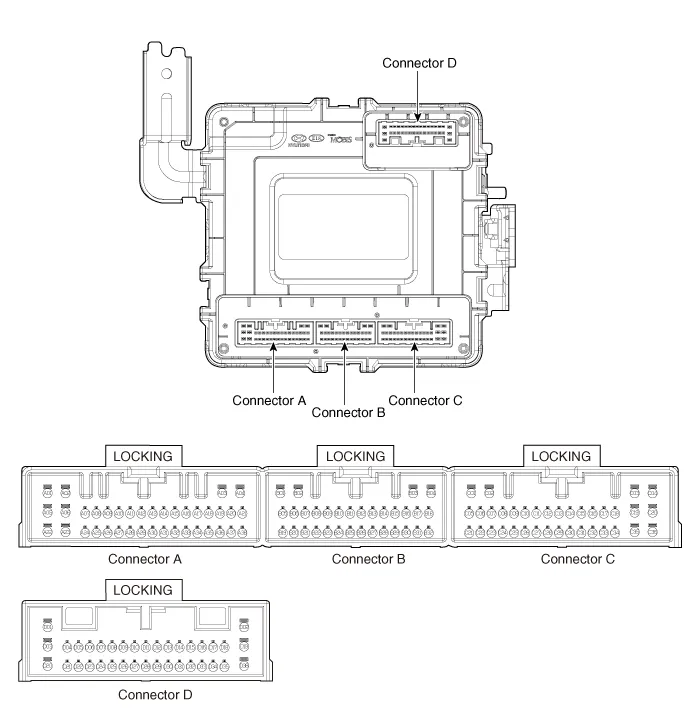

| No | Connector A | Connector B | Connector C | Connector D |
| 1 | Speed_input | - | ECU ground | Blower motor operate_output |
| 2 | - | Rear washer switch_output | power ground | - |
| 3 | Front washer switch_input | - | Battery (+) ECU | - |
| 4 | PDW-R power_input | - | Battery (+) power | - |
| 5 | RPM_input | Front wiper low relay_output | - | - |
| 6 | - | - | Immobilizer antenna power_output | Start feedback_output |
| 7 | ACC relay_output | PDW switch IND_output | Immobilizer antenna ground_output | - |
| 8 | Multifunction switch ground_output | - | IGN 1_output | - |
| 9 | - | - | - | Passenger outside handle _output |
| 10 | Front wiper switch_output | - | - | - |
| 11 | IGN1 relay_output | - | B_CAN (Low) | - |
| 12 | Head lamp (High) switch_output | - | B_CAN (High) | - |
| 13 | IGN2 relay_output | Auto light sensor signal_output | Start relay_output | - |
| 14 | Mirror unfolding_output | - | P_CAN (Low) | Bumper antenna power_output |
| 15 | wiper relay power_output | - | P_CAN (High) | Passenger outside handle antenna(+)_output |
| 16 | Rear right seat belt IND_output | SSB switch 2_input | Sunroof status_output | Driver outside handle antenna(+)_output |
| 17 | Rear left seat belt IND_output | PDW OPT_output | PDW-R switch_output | Tailgate antenna(+)_output |
| 18 | - | Front wiper back up switch_input | IFU door unlock signal_output | Interior antenna2 power_output |
| 19 | Rear wiper relay | Front wiper high relay_output | LIN3 | Interior antenna1 power_output |
| 20 | - | SSB symbol illumination (+)_output | LIN4 | - |
| 21 | PDW power_output | - | - | - |
| 22 | - | - | ATM solenoid_output | - |
| 23 | - | Auto light sensor ground_output | ACC_output | - |
| 24 | Brake switch_output | - | - | - |
| 25 | Rear wiper relay_output | - | - | Driver outside handle switch_output |
| 26 | UIPROA OPT_output | - | - | - |
| 27 | Front wiper volume switch_output | - | - | - |
| 28 | - | - | - | - |
| 29 | Light switch_output | - | kline IMMO | - |
| 30 | Puddle lamp_output | SSB switch1_output | RVM switch_output | - |
| 31 | Fog lamp switch_output | - | P-Position_output (AT) | Bumper antenna ground_output |
| 32 | Mirror folding_output | Wiper parking switch_output | Clutch ignition lock switch_output (MT) | Passenger outside handle antenna(-)_output |
| 33 | - | IGN2_output | Driver outside handle antenna (-)_output | |
| 34 | Rear center seat belt IND_output | LIN1 | Tailgate antenna (-)_output | |
| 35 | - | LIN2 | Interior antenna2 ground_output | |
| 36 | - | Auto light sensor power_output | Interior antenna1 ground_output | |
| 37 | External amplifier_output | |||
| 38 | PDW-R power_output |

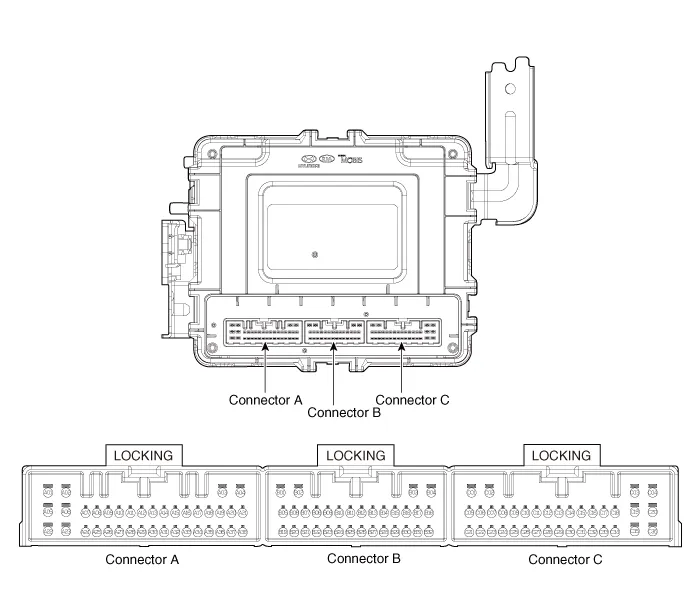

| No | Connector A | Connector B | Connector C |
| 1 | - | - | ECU ground |
| 2 | - | Rear washer switch_input | Power ground |
| 3 | Front washer switch_input | - | Battery (+) ECU |
| 4 | PDW-R power_input | - | Battery (+) power |
| 5 | - | Front wiper low relay_output | - |
| 6 | - | Key holder illumination_output | Immobilizer antenna power_output |
| 7 | - | PDW switch IND_output | Immobilizer antenna ground_output |
| 8 | Multifunction switch ground_input | - | IGN 1_input |
| 9 | - | - | - |
| 10 | Front wiper switch_input | - | - |
| 11 | IGN1 relay_output | - | B_CAN (Low) |
| 12 | Head lamp (High) switch_input | - | B_CAN (High) |
| 13 | - | Auto light sensor signal_input | - |
| 14 | Mirror unfolding_output | - | P_CAN (Low) |
| 15 | wiper relay power_output | - | P_CAN (High) |
| 16 | Rear right seat belt IND_output | Key in switch_input | Sunroof status_input |
| 17 | Rear left seat belt IND_output | PDW OPT_input | PDW-R switch_input |
| 18 | - | Front wiper back up switch_input | Door unlock signal_output |
| 19 | Rear wiper relay | Front wiper high relay_output | LIN3 |
| 20 | - | - | LIN4 |
| 21 | PDWpower_output | - | - |
| 22 | - | - | ATM Solenoid_output |
| 23 | - | Auto light sensor ground_output | ACC_input |
| 24 | Brake switch_input | - | - |
| 25 | Rear wiper relay_output | - | - |
| 26 | UIPROA OPT_input | - | Key in solenoid_output |
| 27 | Front wiper volume switch_input | - | Start relay_output |
| 28 | - | - | - |
| 29 | Light switch_input | - | kline IMMO |
| 30 | - | - | RVM switch_input |
| 31 | Fog lamp switch_input | - | Key interlock switch_input |
| 32 | Mirror folding_output | wiper parking switch_input | - |
| 33 | - | IGN2_input | |
| 34 | Rear center seat belt IND_output | LIN1 | |
| 35 | - | LIN2 | |
| 36 | - | Auto light sensor power_output | |
| 37 | - | ||
| 38 | PDW-R power_output |
